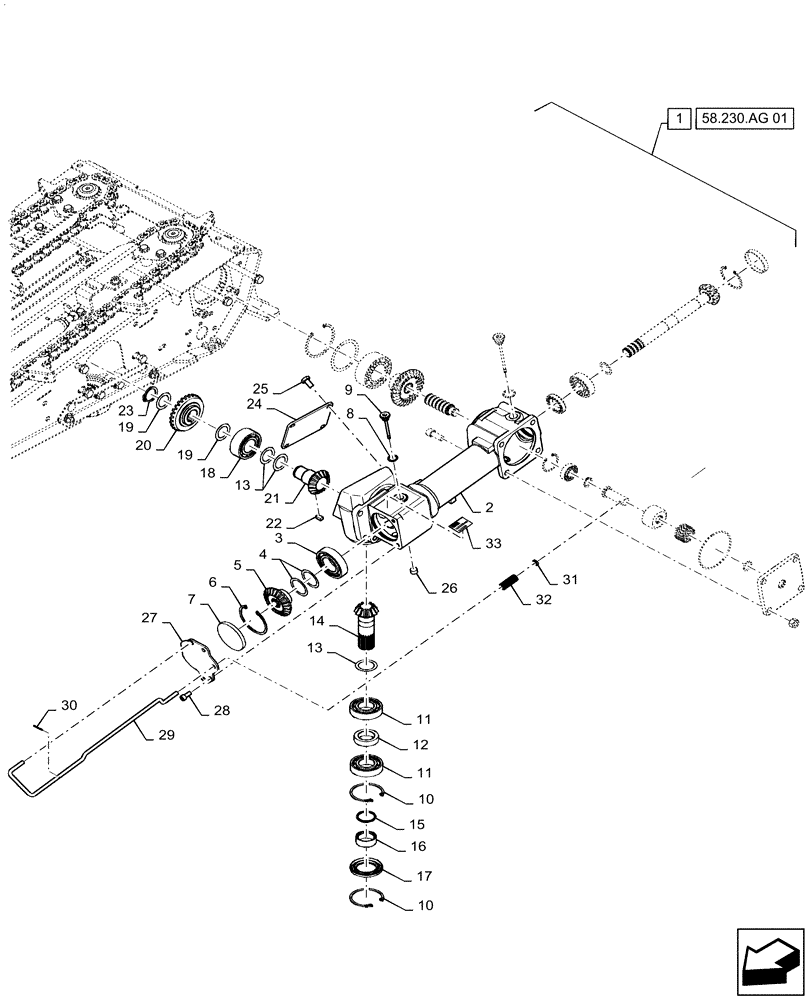

Запчасти Case IH 5505-65 (58.230.AG[02]) - GEARBOX, DRIVE, CHOPPER (58) - ATTACHMENTS/HEADERS

1

84207845

Assy, Corn Head Row Unit Chopping, Incl 2 -33

GEARBOX

1шт.

2

322644750

HOUSING

Gearbox

1шт.

3

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

4

322493200

SET OF RINGS

Shim Kit

1шт.

5

322493150

GEAR

Bevel, 23 Teeth

1шт.

6

300633

SNAP RING,M80, Internal

1шт.

7

322493050

CAP COVER

Plug

1шт.

8

322645950

SEALING WASHER,17mm ID x 22mm OD x 1.5mm Thk

1шт.

9

322645850

INDICATOR

Dipstick

1шт.

10

370018

SNAP RING,M72, Internal

2шт.

11

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

2шт.

12

322494250

BUSHING

Spacer

1шт.

13

322493800

SET OF RINGS

Shim Kit

2шт.

14

322494550

GEAR

Bevel, 12 Teeth

1шт.

15

14458481

O-RING,1.362" ID x 0.103" Width

1шт.

16

84370749

BUSHING,39.4mm ID x 44.99mm OD x 18mm L

Collar

1шт.

17

84370750

SEAL

Oil

1шт.

18

28043420

BALL BEARING,35mm ID x 72mm OD x 27mm W

1шт.

19

322493900

SET OF RINGS

Kit, Shim

1шт.

20

322494050

GEAR

Bevel, 26 Teeth

1шт.

21

322493750

GEAR

Bevel, 17 Teeth

1шт.

22

350384614

KEY

Parallel

1шт.

23

370003

SNAP RING,M30, External

1шт.

24

322494150

COVER

Gearcase

1шт.

25

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

26

350359405

PLUG

2шт.

27

322645350

BRACKET

1шт.

28

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

29

322645250

LEVER

1шт.

30

87016662

HAIR PIN COTTER,M2 x 18mm L

1шт.

31

322645550

WASHER

1шт.

32

322645450

SPRING

Detent

1шт.

33

NSS

NOT SOLD SEPARAT

Decal Tag, Identification, Incl in 1

1шт.
