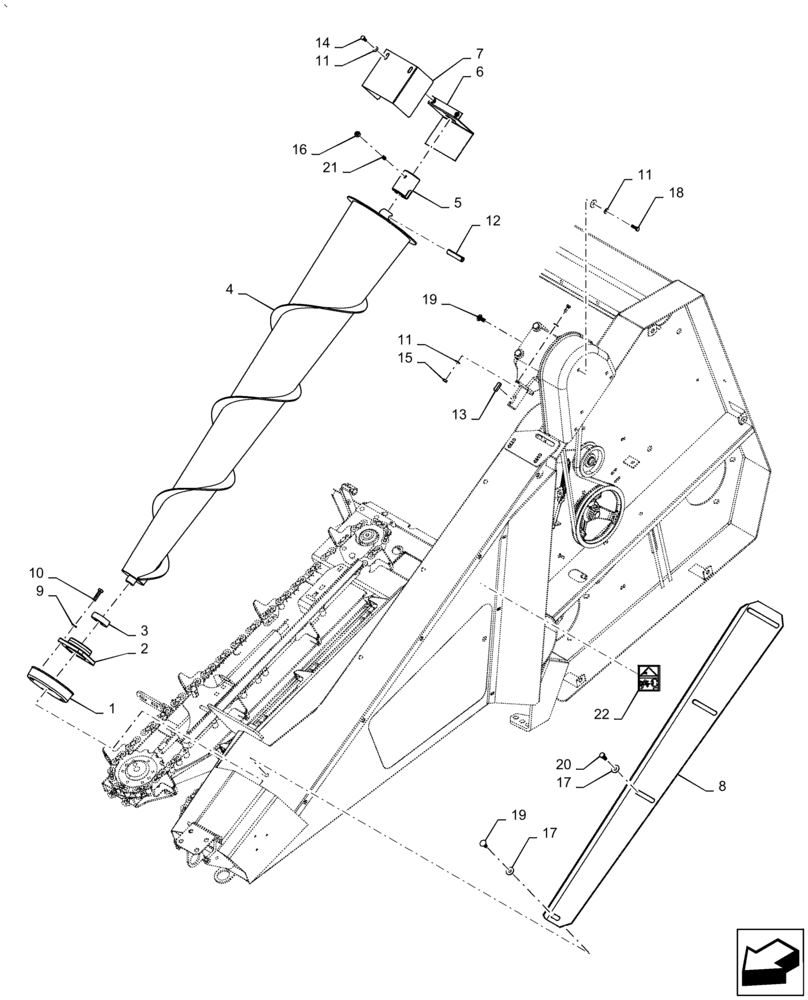

Запчасти Case IH 5505-65 (58.228.AG[03]) - AUGER DIVIDER, END, LH (58) - ATTACHMENTS/HEADERS

1

84976235

PROTECTION CAP

Shield

1шт.

2

84976225

BEARING HOUSING

1шт.

3

340411236

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

4

84976231

AUGER

Weld Assy, LH

1шт.

5

84976237

HYD CONNECTOR

Coupling, Auger Drive

1шт.

6

84976000

GUARD

Shield

1шт.

7

84976267

GUARD

Shield, End Auger

1шт.

8

84976405

SUPPORT

Plate, Anti-Wrap RH

1шт.

9

87016617

LOCK WASHER,M8

4шт.

10

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

9шт.

12

278910

LOCK PIN,12mm OD x 55mm L, Slotted

1шт.

13

170005

KEY,M8 x 7mm W x 25mm OAL

Square

3шт.

14

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

15

9706755

NUT,M6, Cl 8

4шт.

16

9706690

NUT,M8 x 1.25, Cl 8

10шт.

17

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

7шт.

18

120100

BOLT,M6 x 20mm, Cl 8.8

5шт.

19

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

21

300477

SET SCREW,M8 x 16mm

1шт.

22

341000042

DECAL

Warning, Crush Hazard

1шт.
