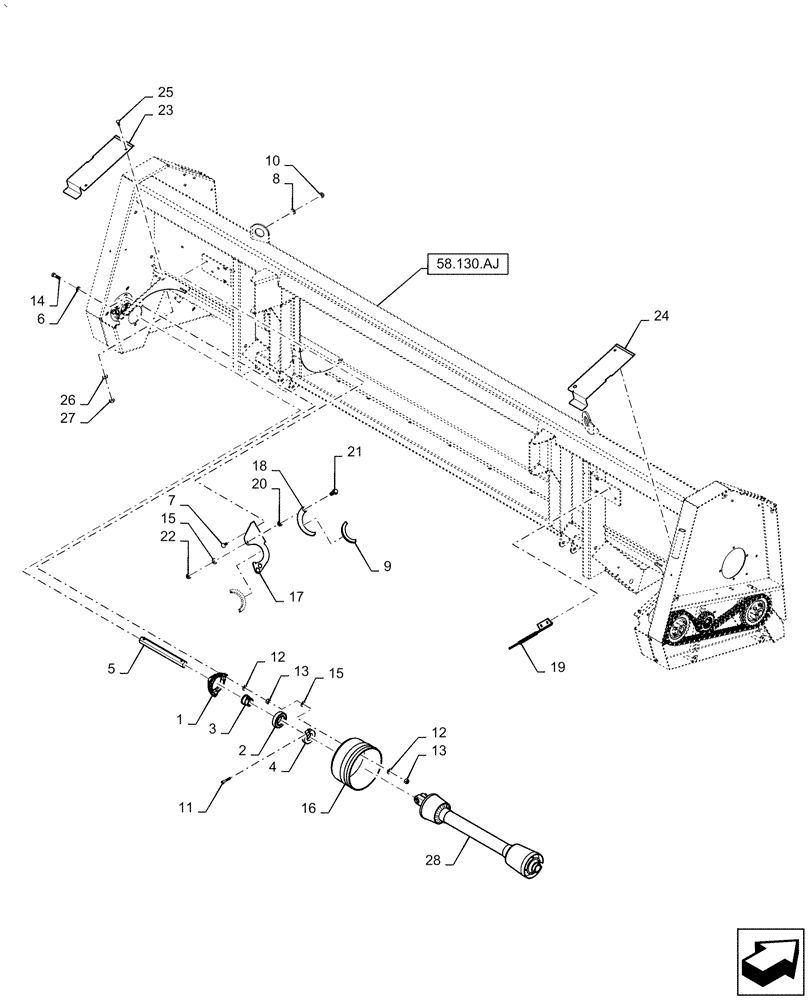

Запчасти Case IH 5505-65 (58.100.AH[04]) - DRIVE HEADER ASSY, REAR, WITH CHOPPER (58) - ATTACHMENTS/HEADERS

1

300019980

SUPPORT

Housing, Bearing

6шт.

2

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

Ball

6шт.

3

87750436

BUSHING

2шт.

4

87750435

LOCKING RING

2шт.

5

47517385

Drive Row Unit 6RR65

SHAFT

2шт.

6

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

18шт.

7

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

24шт.

8

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

24шт.

9

9850033

SEAL

2.17шт.

10

100016

NUT,M10 x 1.5, Cl 8

26шт.

11

14420531

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 10.9

2шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

13

825-11412

NUT,M12 x 1.25, Cl 8

12шт.

14

16208334

BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9

6шт.

15

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

8шт.

16

47681406

Shield, Safety, PTO

BOARD

2шт.

17

47688521

PTO, Hanger

SERVICE KIT

2шт.

18

47688522

PTO, LH

HOOK

1шт.

19

47688564

PTO, RH

HOOK

1шт.

20

10397380

GROMMET

2шт.

21

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

2шт.

22

84014971

FLANGE NUT,M12 x 1.75, Cl 8.8

Prev Torque

2шт.

23

47687272

LH

COVER

1шт.

24

47687274

RH

COVER

1шт.

25

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

26

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

4шт.

27

9706690

NUT,M8 x 1.25, Cl 8

4шт.

28

47673319

PTO-5R65/6R55

SHAFT

2шт.
