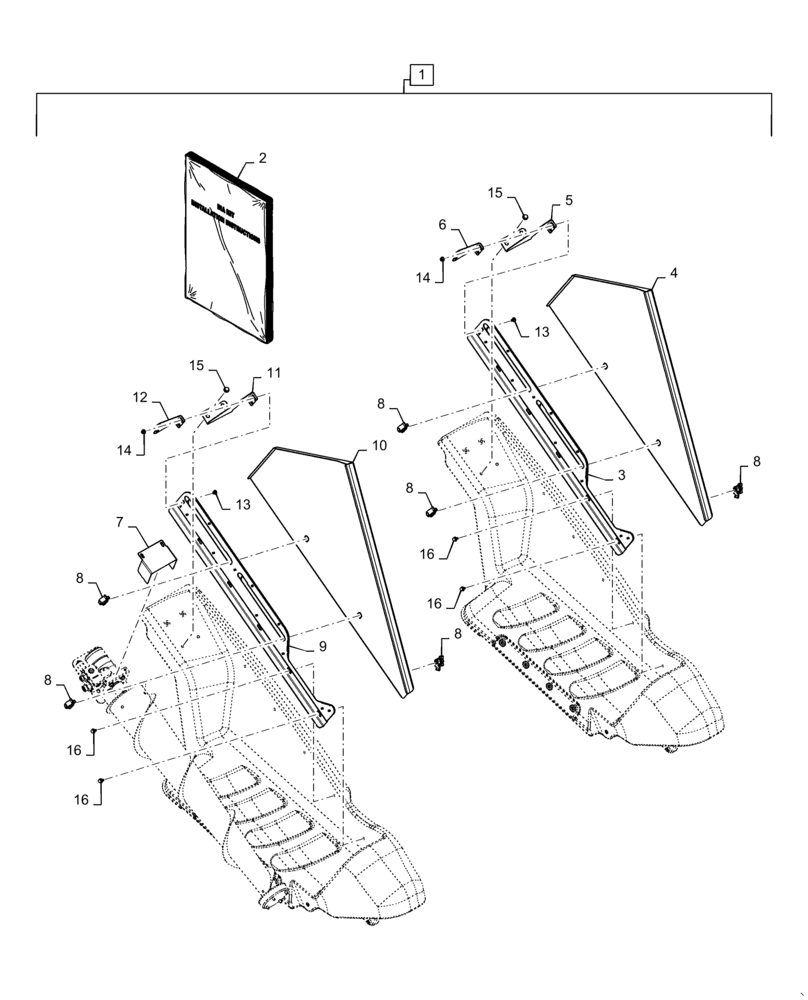

Запчасти Case IH 4416-30 (88.100.58[01]) - DIA KIT, FIXED TALL CORN ATTACHMENT (88) - ACCESSORIES

1

47377859

SERVICE KIT

Incl 2 - 16

1шт.

2

47569466

INSTRUCTION

Kit, Installation, Tall Corn Attachment

1шт.

3

47558919

SUPPORT

Assy, LH Base

1шт.

4

47543031

DIVIDER

Tall Coen Attachment

1шт.

5

47558918

SUPPORT

W/O Auger LH

1шт.

6

47558922

SUPPORT

With Auger Divider LH

1шт.

7

47558850

SHIELD

Auger

2шт.

8

138699A2

LOCK

Latch Shield

6шт.

9

47558930

SUPPORT

Assy, RH Base

1шт.

10

47558929

DIVIDER

Tall Corn Attachment

1шт.

11

47565668

SUPPORT

W/O Auger RH

1шт.

12

47565670

SUPPORT

With Auger Divider RH

1шт.

13

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

15

87646158

BOLT,Hex, M10 x 15mm, Cl 8.8

4шт.

16

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

10шт.
