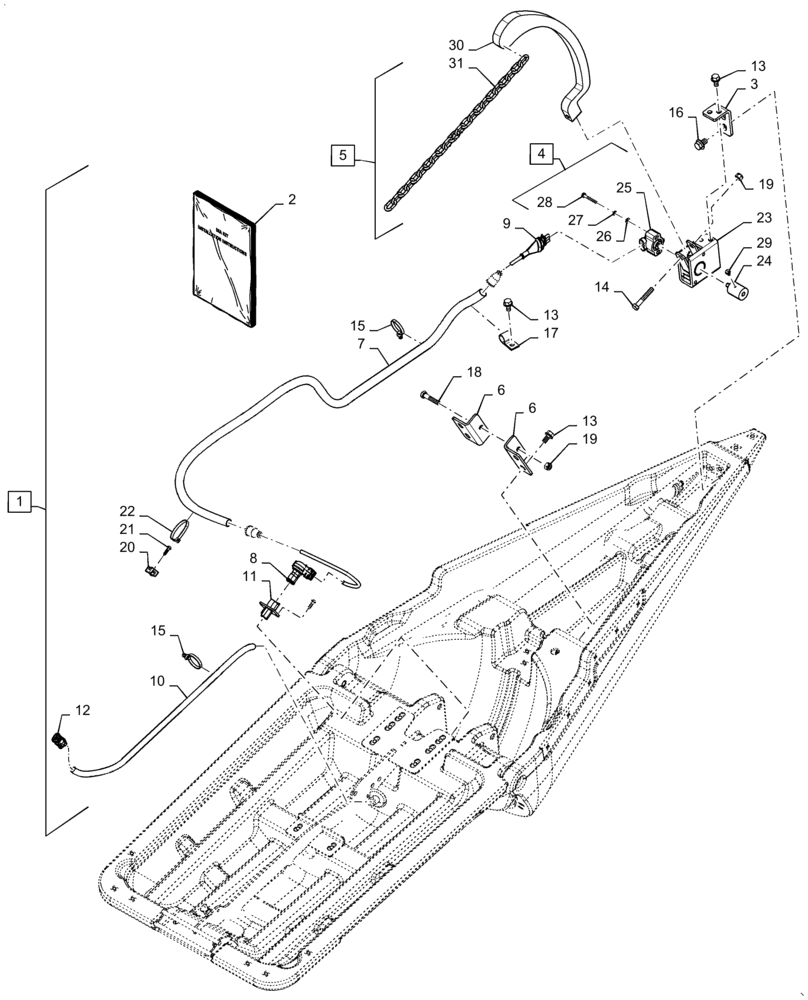

Запчасти Case IH 4416-30 (88.100.55[01]) - DIA KIT, AUTO HEADER HEIGHT CONTROL W/LATERAL TILT (88) - ACCESSORIES

1

47582503

KIT

Incl 2 - 31

1шт.

2

47651822

INSTRUCTION

Assy, AHHC

1шт.

3

47399993

SUPPORT

Header Height Control

4шт.

4

84543535

SENSOR

Assy, AHHC, Incl 23 - 29

4шт.

5

47372889

ROD

Assy, Sensor, Incl 30 - 31

4шт.

6

47415223

MOUNT

Header Height Control Chain

8шт.

7

47361005

WIRE HARNESS

Between Main Harness and Cable Float Sensors

4шт.

8

47359568

ELEC CONNECTOR

X-983HH-L/C/R Between Main Harness and Cable Float Sensors

1шт.

8

84058193

LOCKING TAB,Wedge Lock

X-983HH-L/C/R Between Main Harness and Cable Float Sensors

1шт.

8

47380673

WIRE CONNECTOR

X-983HH-L/C/R Between Main Harness and Cable Float Sensors

1шт.

8

84121591

ELEC CONNECTOR

X-983HH-L/C/R Between Main Harness and Cable Float Sensors

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-983HH-L/C/R Between Main Harness and Cable Float Sensors

3шт.

9

87644909

WIRE CONNECTOR,Female, 3 Pins

X-463L/C/R Sensor Header Height Left/Center/Right Between Main Harness and Cable Float Sensors

1шт.

9

84428161

WIRE CONNECTOR

X-463L/C/R Sensor Header Height Left/Center/Right Between Main Harness and Cable Float Sensors

1шт.

9

87692882

ELEC. TERMINAL PIN

X-463L/C/R Sensor Header Height Left/Center/Right Between Main Harness and Cable Float Sensors

3шт.

10

47361006

WIRE HARNESS

Between Main Harness and the Header Height Row Sensors

4шт.

11

84146319

3 WAY CONNECTION

X-983 Between Connectors Sensors and the Header Height Row Sensors

1шт.

11

87695625

WIRE CONNECTOR,Locking, Green

X-983 Between Connectors Sensors and the Header Height Row Sensors

1шт.

11

87695623

ELEC. TERMINAL PIN

X-983 Between Connectors Sensors and the Header Height Row Sensors

3шт.

12

47416266

WIRE CONNECTOR

X-981 Between Connectors Sensors and the Header Height Row Sensors

1шт.

12

84058193

LOCKING TAB,Wedge Lock

X-981 Between Connectors Sensors and the Header Height Row Sensors

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-981 Between Connectors Sensors and the Header Height Row Sensors

3шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

32шт.

14

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

15

87668737

CABLE TIE,203.2mm L, Nylon, Black

24шт.

16

87646158

BOLT,Hex, M10 x 15mm, Cl 8.8

8шт.

17

9837692

CLAMP,16.67mm ID, 13.46mm Bolt Hole, P Type

8шт.

18

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

19

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

20

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

8шт.

21

84043237

SCREW,Pozidrive, Pan HD, M4.8 x 1.6 x 19mm

24шт.

22

86566989

CABLE TIE,208mm L

8шт.

23

84543534

HOUSING

AHHC, Incl 4

1шт.

24

47427861

INSERT

Assy. Pivot Tube AHHC, Incl 4

1шт.

25

86616339

SENSOR,CCW

Incl 4

1шт.

26

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

Incl 4

2шт.

27

140024

LOCK WASHER,M4

Incl 4

2шт.

28

86511825

SCREW,Phillips Drive, Pan HD, M4 x 30mm, Cl 4.8

Incl 4

2шт.

29

281048

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 3/8"

Incl 4

1шт.

30

47372891

ROD

Sensor, Incl 5

1шт.

31

86611970

CHAIN

Sensor, Incl 5

1шт.
