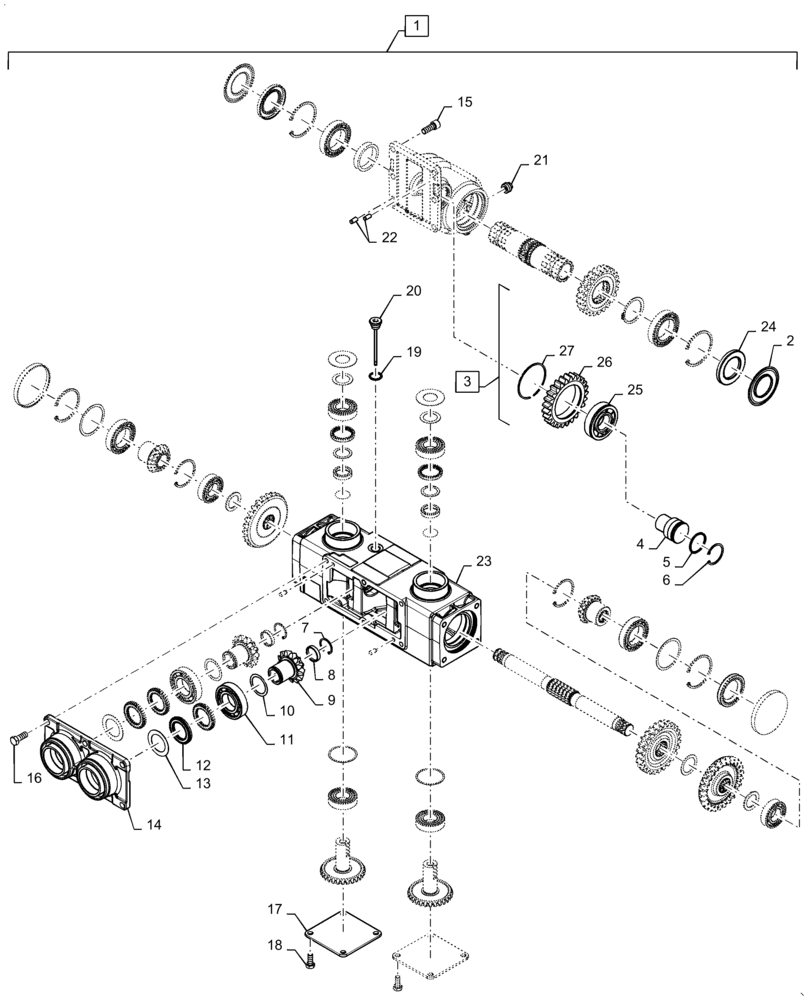

Запчасти Case IH 4416-30 (58.414.AA[02]) - GEARBOX, ASSY, CORNHEAD ROW UNIT, NON-CHOPPING (58) - ATTACHMENTS/HEADERS

1

84571575

GEARBOX

Incl 2 - 27

1шт.

2

322497350

PROTECTION CAP

2шт.

3

84390159

GEAR

Idler Assy, Incl 25 - 27

1шт.

4

84571580

SHAFT

1шт.

5

511212

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

6

300647

SNAP RING,M47, Int

1шт.

7

300642

CIRCLIP,M35 x 1.5mm W, Internal

2шт.

8

322644650

PROTECTION CAP

2шт.

9

322644450

GEAR

Bevel, 13T, Stalk Roll, Driven

2шт.

10

322493200

SET OF RINGS

Shim

2шт.

11

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

2шт.

12

322578450

OIL SCRAPER RING

4шт.

13

322497950

WASHER

2шт.

14

322644250

COVER

Housing, Stalk Roll

1шт.

15

14422021

HEX SOC SCREW,M12 x 30mm, Cl 8.8

6шт.

16

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

17

322494150

COVER

Gearbox

2шт.

18

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

19

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

20

322644550

INDICATOR

Dipstick

1шт.

21

322496550

PLUG

1шт.

22

10337410

DOWEL,M8 x 18

4шт.

23

84523341

HOUSING

Gearbox, Main

1шт.

24

322498850

OIL SCRAPER RING

2шт.

25

84355790

BALL BEARING

1шт.

26

322497650

GEAR

1шт.

27

84390160

RING

1шт.
