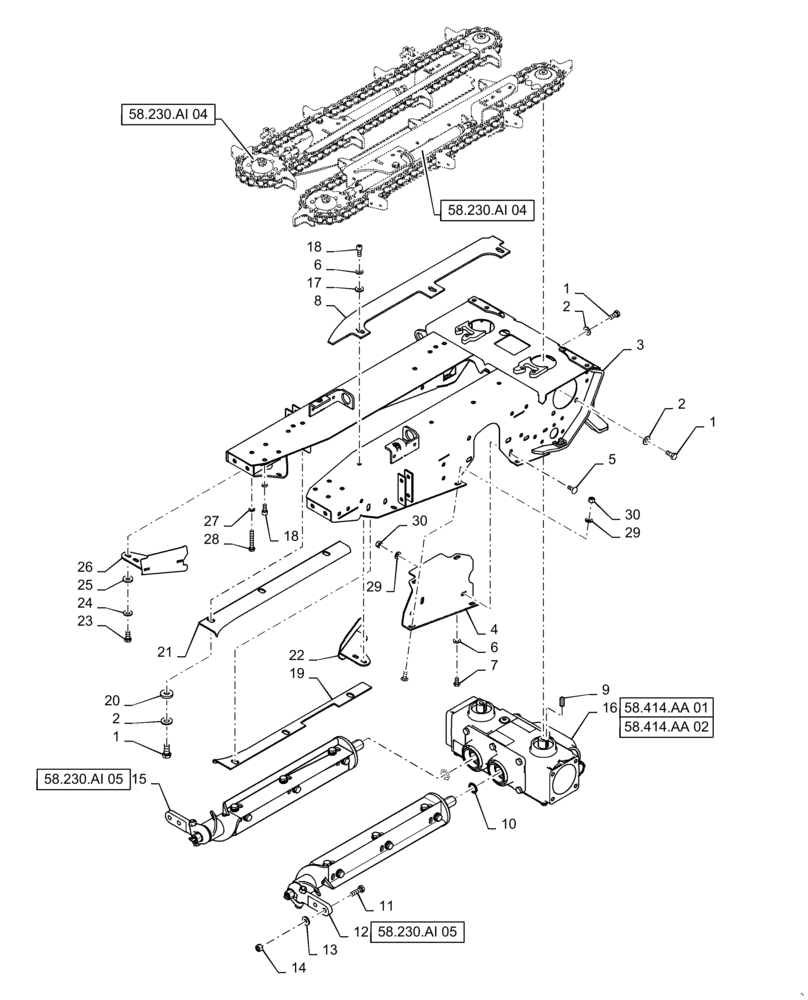

Запчасти Case IH 4416-30 (58.230.AI[02]) - ROW UNIT, WITHOUT CHOPPER (58) - ATTACHMENTS/HEADERS

1

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

12шт.

2

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

3

84575119

FRAME

Row Unit

1шт.

4

322428950

SUPPORT

1шт.

5

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

8

47474090

PLATE

LH

1шт.

9

322743050

KEY

2шт.

10

322593550

SEAL

2шт.

11

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

12

322640100

ROLLER

1шт.

13

12648521

WASHER,12.2mm ID x 28mm OD x 4mm Thk

4шт.

14

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

15

322640300

ROLLER

1шт.

16

84571976

GEARBOX

1шт.

16

84571976R

REMAN-GEARBOX

1шт.

16

84571976C

CORE-GEARBOX

Return Number

1шт.

17

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

18

86508097

HEX SOC SCREW,M10 x 25mm, Cl 12.9, Full Thd

3шт.

19

322592150

SHEAR BAR

1шт.

20

84000016

WASHER,12.5mm ID x 30mm OD x 5mm Thk

6шт.

21

322592050

SHEAR BAR

1шт.

22

47640753

SHIELD

LH

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

25

86592699

WASHER,8.4mm ID x 23mm OD x 4mm Thk

4шт.

26

47640768

SHIELD

RH

1шт.

27

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

28

120071

BOLT,Hex, M10 x 65, 8.8

4шт.

29

355501130

WASHER

4шт.

30

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.
