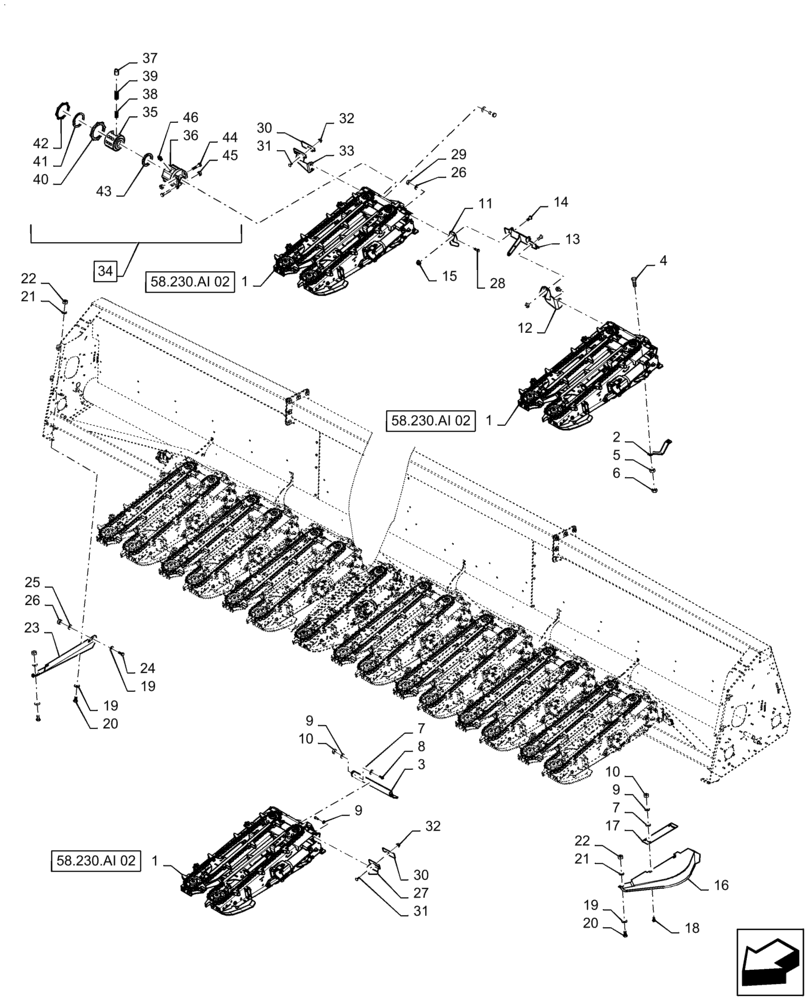

Запчасти Case IH 4416-30 (58.230.AI[01]) - ROW UNIT, WITHOUT CHOPPER (58) - ATTACHMENTS/HEADERS

1

84572441

ROW UNIT

Without Chopper

16шт.

2

322422250

RETAINER COLLAR

Support

32шт.

3

322630550

SHIELD

Row Unit Trash

16шт.

4

15981131

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

64шт.

5

10790521

NUT,M16 x 1.5, Cl 10

64шт.

6

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

64шт.

7

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

34шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

36шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

38шт.

10

9706690

NUT,M8 x 1.25, Cl 8

34шт.

11

47478767

SUPPORT

RH, Hood

15шт.

12

47478770

SUPPORT

LH, Hood

15шт.

13

47478036

HINGE

Inner Hood

15шт.

14

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

30шт.

15

9804278

FLANGE NUT,M10 x 1.5, Cl 8

30шт.

16

322531350

SHIELD

LH

1шт.

17

322462050

COVER PLATE

1шт.

18

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

19

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

20

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

22

9706685

NUT,M12 x 1.75, Cl 8

4шт.

23

322457050

PLATE

RH, Stiffener

1шт.

24

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

25

100016

NUT,M10 x 1.5, Cl 8

2шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

62шт.

27

47581964

BRACKET

LH, Filler

1шт.

28

86705428

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

60шт.

29

86500689

NUT,M10 x 1.5, Cl 10

60шт.

30

47588351

PLATE

Adjust

2шт.

31

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

4шт.

32

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

33

47588374

BRACKET

RH, Filler

1шт.

34

84972762

CLUTCH

Safety, Incl 35 - 46

16шт.

35

84977731

BOX

Housing

1шт.

36

84977728

HUB

1шт.

37

700703406

CAM

20шт.

38

386510

SPRING,Compression, 13mm OD X 13.2mm L

Outer

20шт.

39

386511

SPRING,Compression, 7mm OD x 13.2mm L

Inner

20шт.

40

86636027

DISC

Thrust Ring

1шт.

41

300633

SNAP RING,M80, Internal

1шт.

42

86634290

SEALING RING,58.5mm ID x 84mm OD x 6mm Thk

1шт.

43

86634289

SEAL

Ring

1шт.

44

754181

BOLT

2шт.

45

100038

NUT,M12 x 1.75, Cl 8

2шт.

46

84447449

LUBE NIPPLE,M8.2 x 1

2шт.
