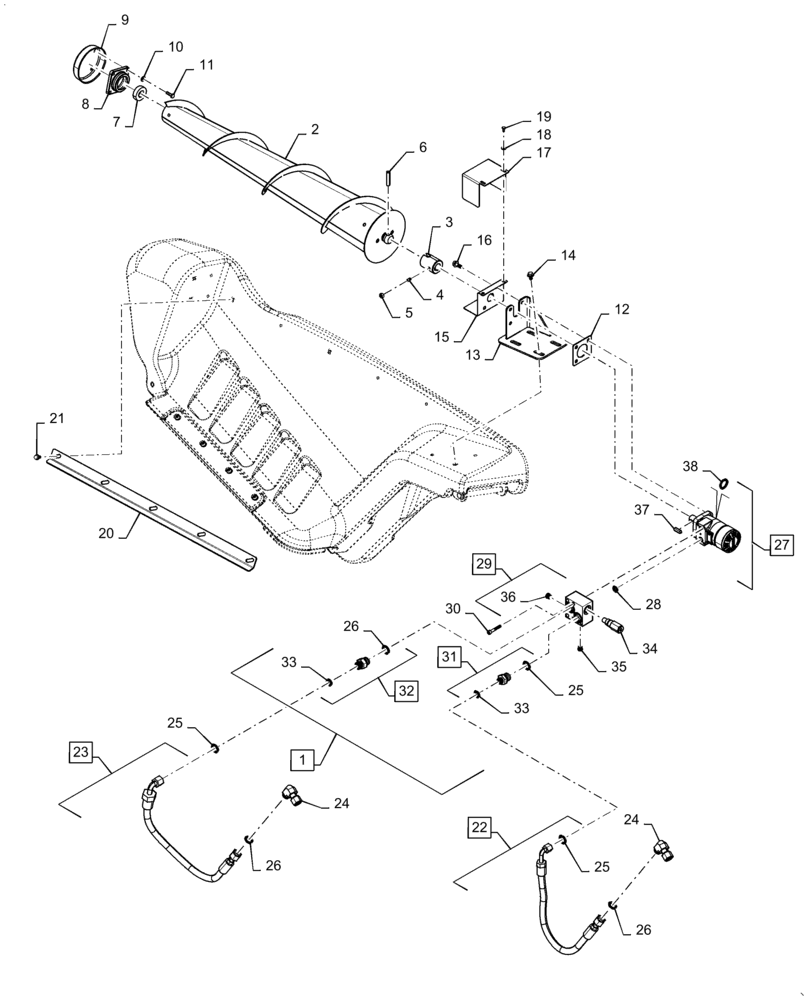

Запчасти Case IH 4416-30 (58.228.AG[04]) - HOOD, AUGER ASSY, RH OUTER DIVIDER (58) - ATTACHMENTS/HEADERS

1

84142005

HYDRAULIC MOTOR

Assy, Incl 25 - 36

1шт.

2

84540200

AUGER

RH Divider

1шт.

3

84278079

COUPLING

Auger Drive

1шт.

4

300477

SET SCREW,M8 x 16mm

1шт.

5

9706690

NUT,M8 x 1.25, Cl 8

1шт.

6

278910

LOCK PIN,12mm OD x 55mm L, Slotted

1шт.

7

340411236

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

8

47377254

HOUSING

Bearing

1шт.

9

84278072

PROTECTION PLATE

Shield

1шт.

10

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

12

84198833

SPACER

Motor Mount

1шт.

13

47482835

MOUNT

RH Auger Motor

1шт.

14

87646158

BOLT,Hex, M10 x 15mm, Cl 8.8

4шт.

15

47410532

SHIELD

Auger

1шт.

16

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

17

47410536

SHIELD

Auger

1шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

19

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

20

47585598

STRIPPER

Auger

1шт.

21

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.

22

47413659

HYDRAULIC HOSE,12.7mm ID x 700mm L, SAE 100R17

Auger Divider, Incl 25 - 26

1шт.

23

47413632

HYDRAULIC HOSE,12.7mm ID x 700mm L, SAE 100R17

Auger Divider, Incl 26

1шт.

24

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

2шт.

25

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

26

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

27

84142007

HYDRAULIC MOTOR

Incl 37 - 38

1шт.

28

272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

29

87641223

VALVE

Rotary Screen Bypass, Incl 34 - 36

1шт.

30

73170457

HEX SOC SCREW,M8 x 50mm, Cl 8.8

4шт.

31

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl 31, 33

1шт.

32

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 26

1шт.

33

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

34

87645709

VALVE

1шт.

35

218-5208

PLUG,Hex, 1/2"-20 ORB

1шт.

36

218-5209

PLUG,Hex, 9/16"-18 ORB

1шт.

37

170030

KEY,8mm x 7mm x 32mm

1шт.

38

9807617

SEAL KIT

1шт.
