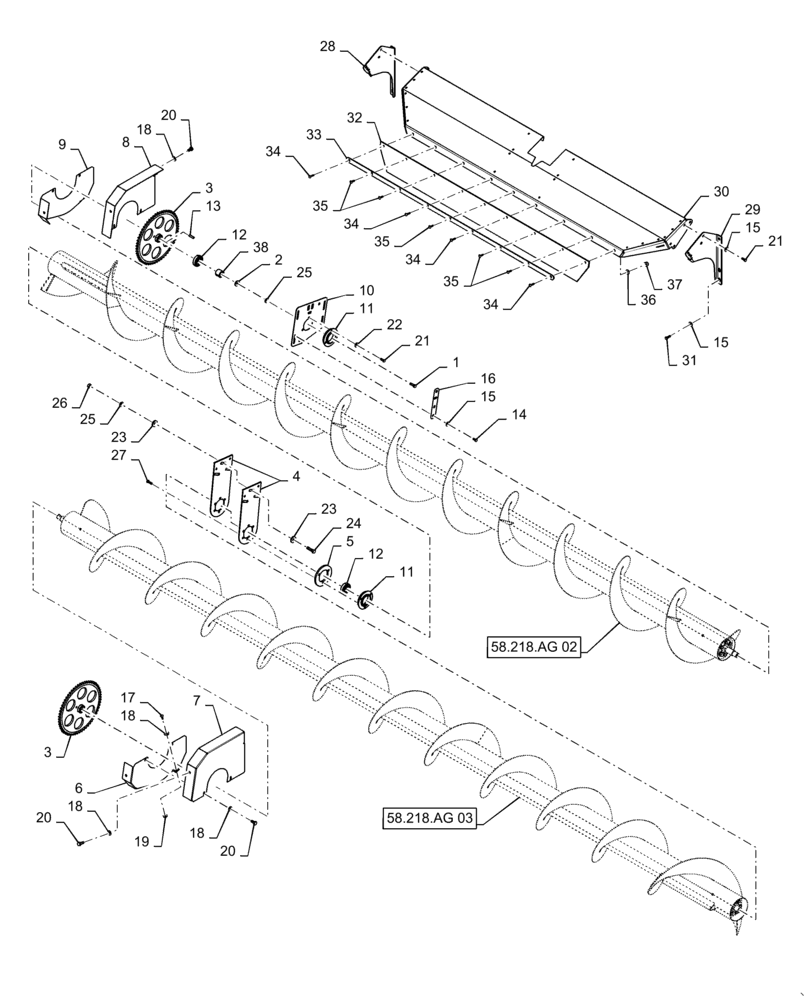

Запчасти Case IH 4416-30 (58.218.AG[01]) - AUGER ASSY (58) - ATTACHMENTS/HEADERS

1

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

2

355511250

WASHER

2шт.

3

84559198

SPROCKET

2шт.

4

87747018

SUPPORT

Center, Auger

2шт.

5

87737509

STEEL PLATE

2шт.

6

47769197

SHIELD

Lower, RH

1шт.

7

47553848

SHIELD

Upper, RH

1шт.

8

47553841

SHIELD

Upper, LH

1шт.

9

47769190

SHIELD

Lower, RH

1шт.

10

47577715

BRACKET

Auger Support

2шт.

11

321140350

FLANGE

4шт.

12

84002007

BALL BEARING,35mm ID x 72mm OD x 17mm W

4шт.

13

354775

KEY,10mm x 8mm x 40mm

2шт.

14

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

16

47577754

BRACKET

4шт.

17

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

19

9706690

NUT,M8 x 1.25, Cl 8

2шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

21

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

12шт.

22

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

6шт.

23

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

24

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

3шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

26

9706685

NUT,M12 x 1.75, Cl 8

3шт.

27

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

28

47578829

SUPPORT

Hood, RH

1шт.

29

47578826

SUPPORT

Hood, LH

1шт.

30

47575568

SHIELD

1шт.

31

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

32

47575571

SLEEVE

Flexible

1шт.

33

47575572

SLAT

1шт.

34

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

4шт.

35

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

5шт.

36

140041

WASHER,M8 x 28mm OD x 3mm Thk

9шт.

37

86629542

NUT,M8 x 1.25, Cl 8.8

9шт.

38

322530150

SPACER

2шт.
