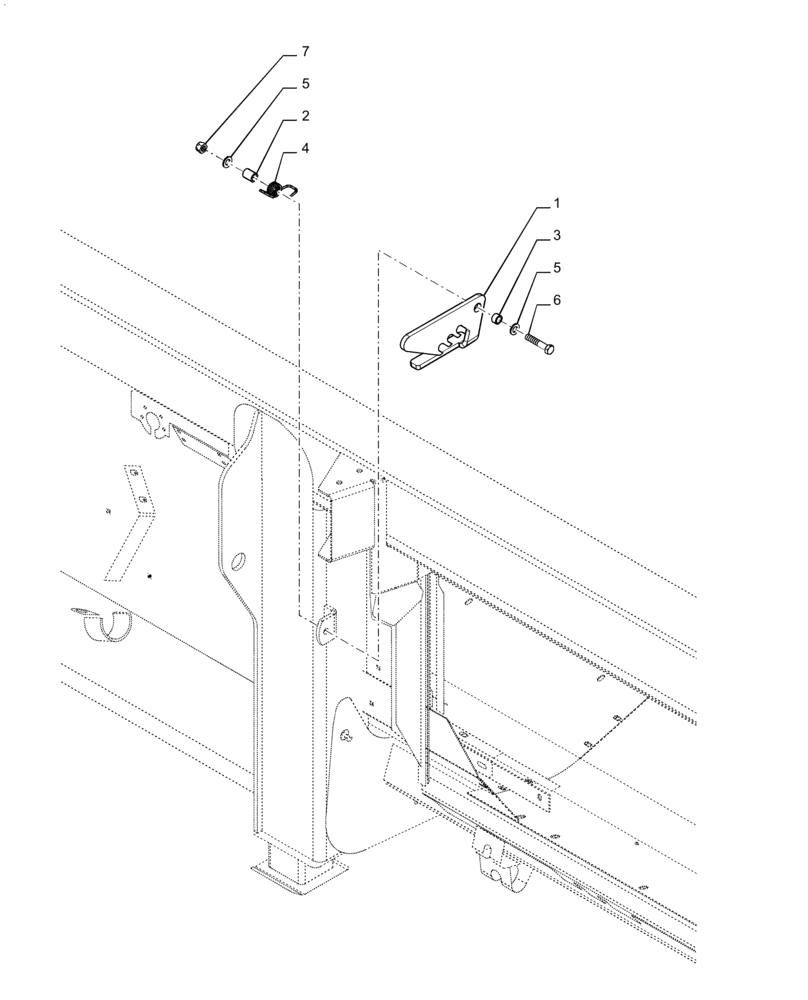

Запчасти Case IH 4416-30 (58.130.BG) - LATCH, ASSY, FEEDER (58) - ATTACHMENTS/HEADERS

1

87614284

CLIP

Hook

1шт.

2

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

Split

1шт.

3

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

3/4 Tube

1шт.

4

87026147

SPRING

Latch

1шт.

5

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

6

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

7

100038

NUT,M12 x 1.75, Cl 8

1шт.
