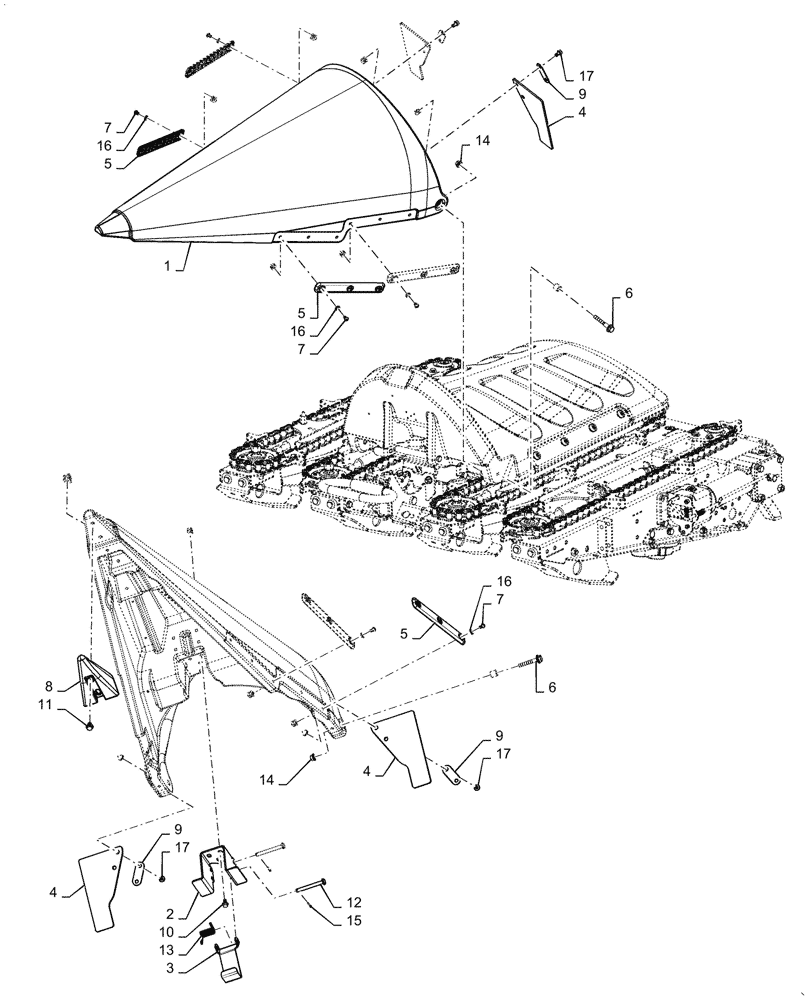

Запчасти Case IH 4416-30 (58.130.BC[03]) - INNER DIVIDER, ASSY (58) - ATTACHMENTS/HEADERS

1

47468213

CROP DIVIDER

Inner, 30"

1шт.

2

47483400

MOUNT

Divider Lock

1шт.

3

47483406

LOCKING TAB

Divider

1шт.

4

47483715

FLAP

Divider Ear Saver, Serial Range: -YGH830499

2шт.

4

48007937

FLAP

Divider Ear Saver, Start Serial: YGH830500

2шт.

5

47358208

WEAR STRIP

Divider

4шт.

6

84528927

STEP BOLT

2шт.

7

47368446

SCREW

12шт.

8

84531925

POINT

Divider

1шт.

9

47631943

PLATE

Ear Saver

2шт.

10

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

11

87646158

BOLT,Hex, M10 x 15mm, Cl 8.8

, Serial Range: -YGH830499

2шт.

11

48056741

BOLT

, Start Serial: YGH830500

2шт.

12

84529307

CLEVIS PIN,10mm OD x 90mm L

2шт.

13

84581856

TORSION SPRING

1шт.

14

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

15

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

17

47662028

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.
