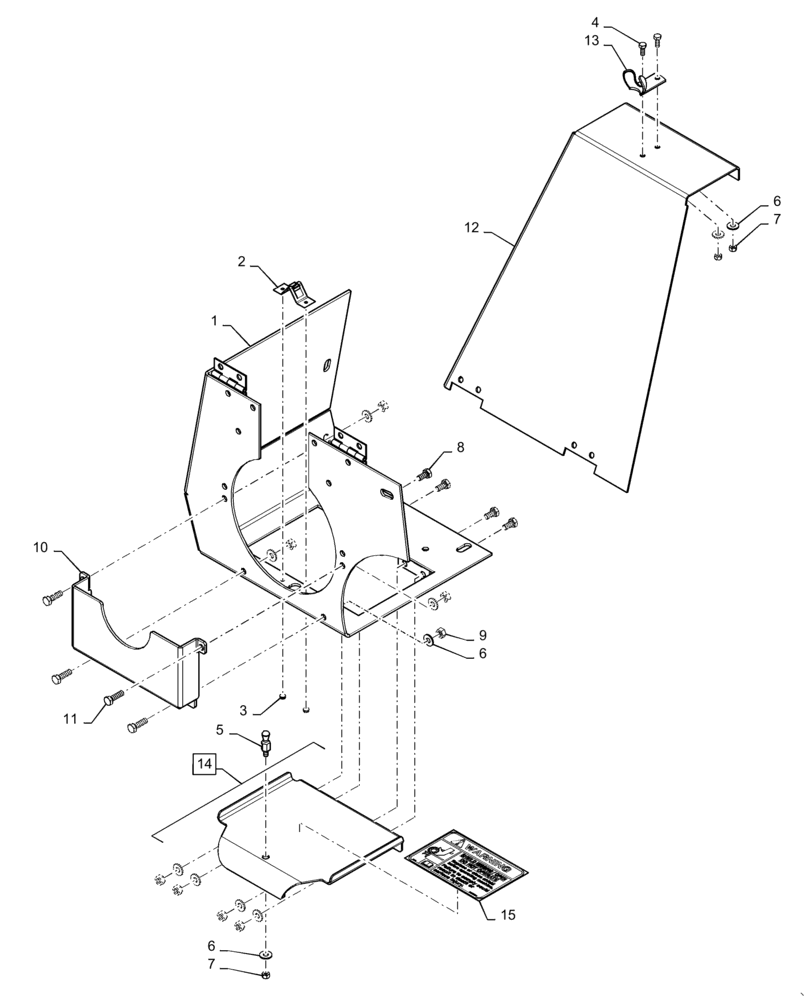

Запчасти Case IH 4416-30 (58.100.AH[05]) - DRIVE, HEADER, AUGER SHIELD, LH, NON-CHOPPING (58) - ATTACHMENTS/HEADERS

1

47581781

SHIELD

LH, Auger Drive

1шт.

2

86998688

LATCH

Cab Skirt Spring

1шт.

3

87490325

RIVET,Pop, 1/8" x 1/4"

2шт.

4

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

4шт.

5

87422429

STUD

Ball

1шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

11шт.

7

87016571

NUT,M5, Cl 5

3шт.

8

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

9

9706755

NUT,M6, Cl 8

8шт.

10

47380001

SHIELD

Bottom Slip Clutch

1шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

12

47581621

SHIELD

LH, Auger Drive

1шт.

13

86975624

LATCH HOOK

Hood Panel

2шт.

14

87715081

SERVICE KIT

Auger Drive Clean Out, Incl 15

1шт.

15

86626959

WARNING DECAL

1шт.
