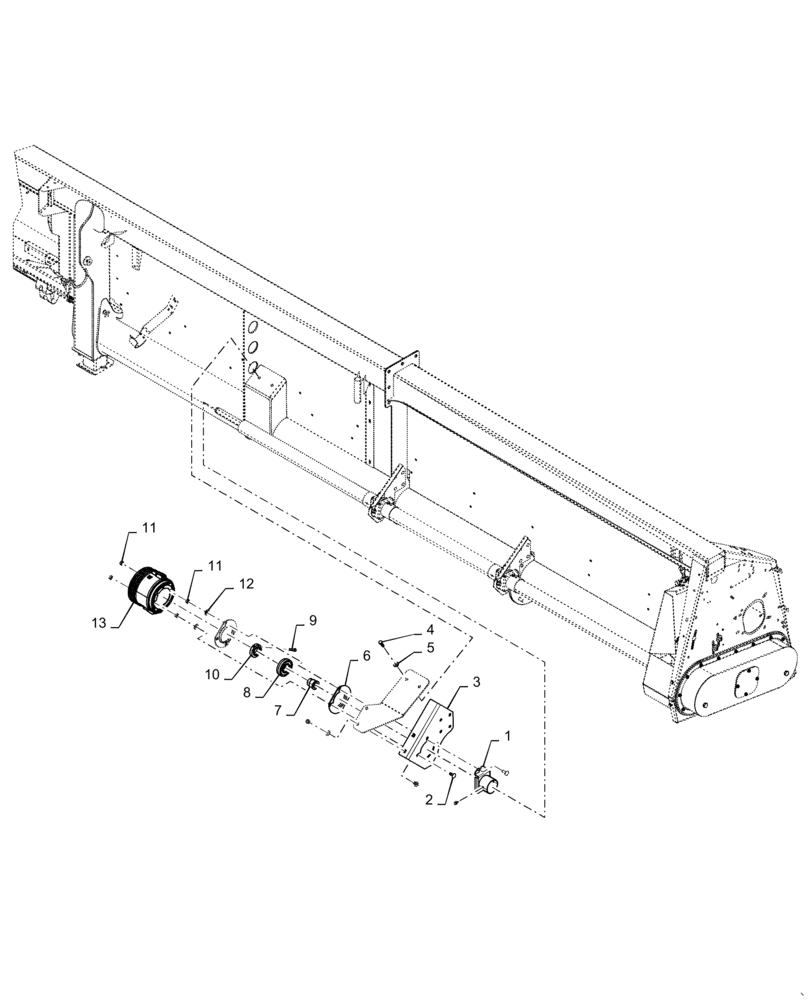

Запчасти Case IH 4416-30 (58.100.AH[04]) - DRIVE, HEADER ASSY, REAR RH, NON-CHOPPING (58) - ATTACHMENTS/HEADERS

1

47582483

BRACKET

Interior, Mount

1шт.

2

334966

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

4шт.

3

47582461

MOUNT

RH, Jackshaft

1шт.

4

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

5

87376144

WASHER,13mm ID x 28mm OD x 5mm Thk

4шт.

6

47649085

FLANGE

Bearing, 100mm

2шт.

7

47579107

BUSHING

1шт.

8

47716689

BALL BEARING

100mm

1шт.

9

14420531

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 10.9

1шт.

10

87750435

LOCKING RING

1шт.

11

9706685

NUT,M12 x 1.75, Cl 8

8шт.

12

47716689

BALL BEARING

100mm

4шт.

13

47672896

SHIELD

Assy, PTO Cone

1шт.
