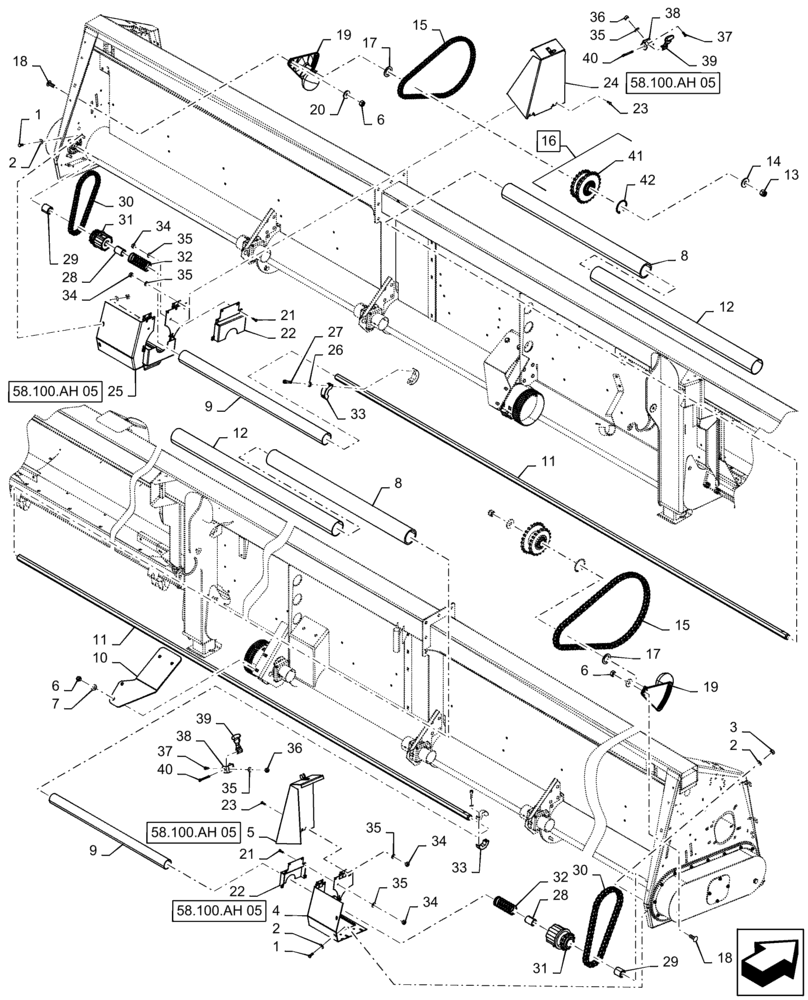

Запчасти Case IH 4416-30 (58.100.AH[03]) - DRIVE, HEADER ASSY, REAR, NON-CHOPPING (58) - ATTACHMENTS/HEADERS

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

3

9706690

NUT,M8 x 1.25, Cl 8

8шт.

4

47581857

SHIELD

Assy, Bottom RH Auger

1шт.

5

47582246

SHIELD

Assy, Top RH Auger

1шт.

6

9706685

NUT,M12 x 1.75, Cl 8

22шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

16шт.

8

47751253

SHIELD

Jackshaft, Middle

2шт.

9

47583697

SHIELD

Jackshaft, Outer

2шт.

10

47582471

SUPPORT

RH, Main Mount

1шт.

11

47545231

SHAFT

Jackshaft

2шт.

12

47583699

SHIELD

Jackshaft, Center

2шт.

13

412066

NUT,M16 x 2.0, Cl 8

2шт.

14

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

2шт.

15

47583574

CHAIN

Auger Drive

2шт.

16

87501858

SPROCKET

Assy, Idler 24T/22T, Incl 41 - 42

2шт.

17

87502359

WASHER

2шт.

18

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

6шт.

19

87284030

IDLER

Base Auger Drive

2шт.

20

195-81030

WASHER

6шт.

21

120100

BOLT,M6 x 20mm, Cl 8.8

12шт.

22

47381437

SHIELD

Top, Slip Clutch

2шт.

23

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

8шт.

24

47582225

SHIELD

Assy, Top LH Auger

1шт.

25

47581783

SHIELD

Assy, Bottom LH Auger

1шт.

26

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

27

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

28

322525550

SLEEVE

2шт.

29

47583672

SPACER

2шт.

30

87284076

CHAIN

Auger Driven

2шт.

31

84568959

CLUTCH

Assy

2шт.

32

353561168

SPRING

2шт.

33

84977051

HALF-SHELL

4шт.

34

9706755

NUT,M6, Cl 8

20шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

24шт.

36

87016571

NUT,M5, Cl 5

4шт.

37

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

4шт.

38

47583637

BRACKET

2шт.

39

86975220

LATCH HOOK

Hood

2шт.

40

88182

COTTER PIN,1/4" OD x 2" L

2шт.

41

87283953

BALL BEARING,30.02mm ID x 62mm OD x 50mm W

1шт.

42

370012

RING,M62, Internal

1шт.
