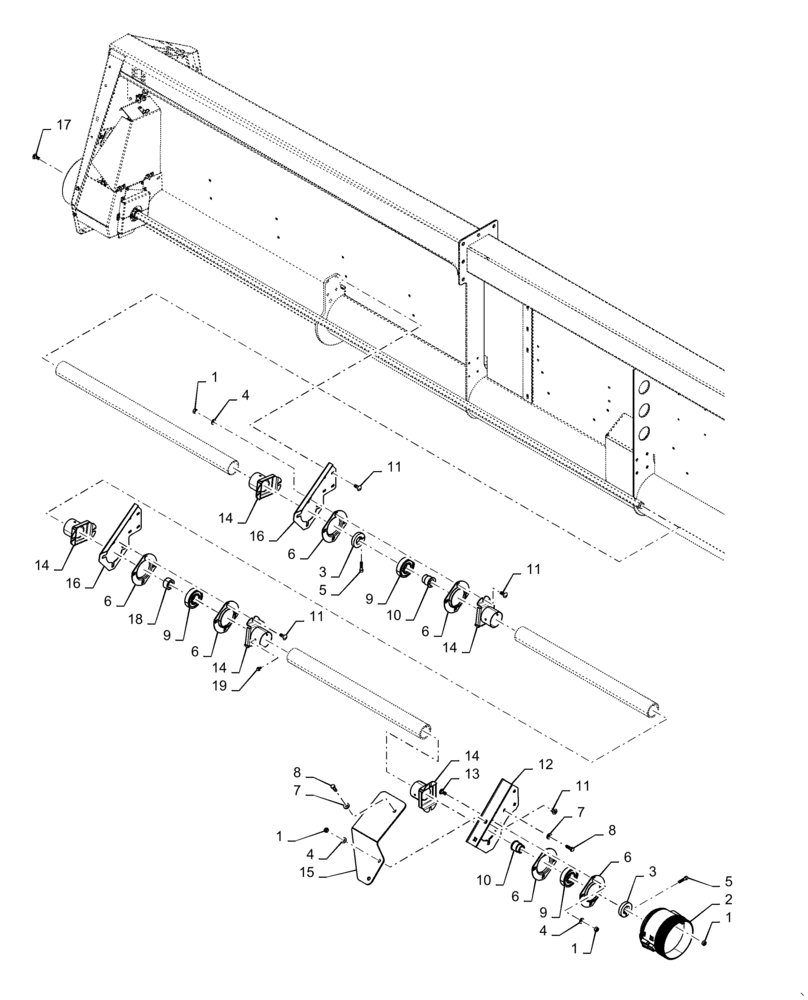

Запчасти Case IH 4416-30 (58.100.AH[01]) - DRIVE, HEADER ASSY, REAR LH, NON-CHOPPING (58) - ATTACHMENTS/HEADERS

1

9706685

NUT,M12 x 1.75, Cl 8

28шт.

2

47672896

SHIELD

PTO Cone

1шт.

3

87750435

LOCKING RING

3шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

24шт.

5

14420531

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 10.9

3шт.

6

47649085

FLANGE

Bearing, 100mm

10шт.

7

87376144

WASHER,13mm ID x 28mm OD x 5mm Thk

8шт.

8

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

8шт.

9

47716689

BALL BEARING

100mm

5шт.

10

47579107

BUSHING

Hex

3шт.

11

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

28шт.

12

47581855

MOUNT

LH, Jackshaft

1шт.

13

334966

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

4шт.

14

47582483

BRACKET

Interior Mount

9шт.

15

47582446

SUPPORT

LH, Main Mount

1шт.

16

47754191

MOUNT

Jackshaft, Interior

4шт.

17

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

8шт.

18

47740923

BUSHING

Drive

2шт.

19

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

6шт.
