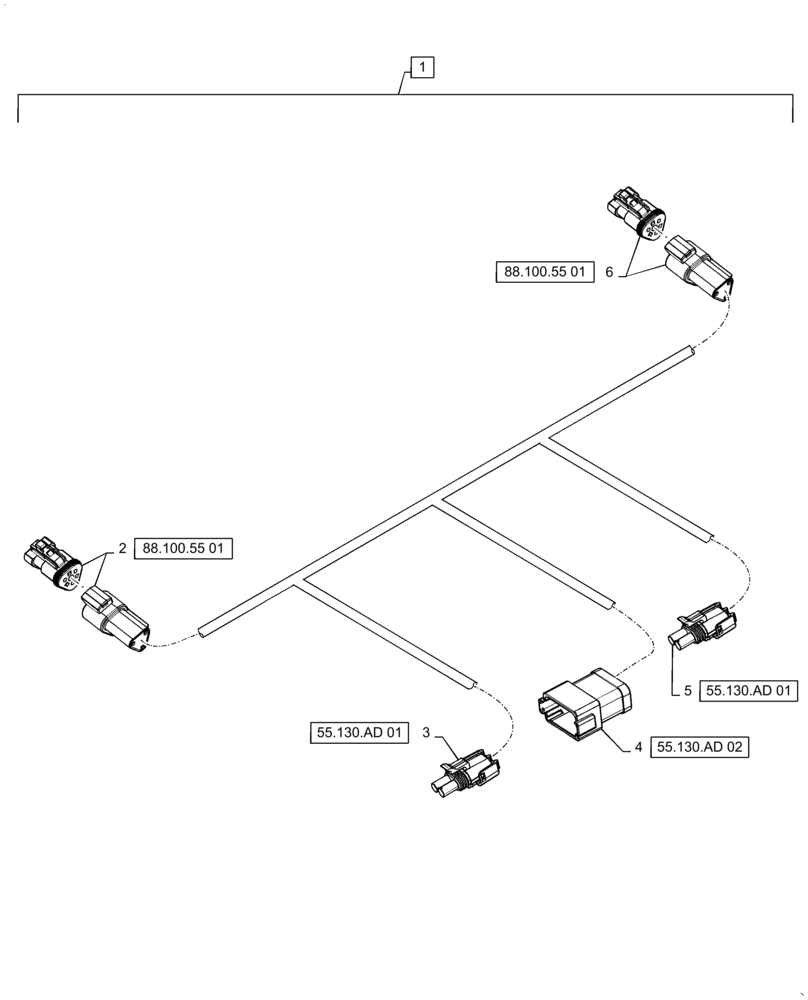

Запчасти Case IH 4416-30 (55.130.AD[03]) - WIRING ASSY, TOP BEAM (55) - ELECTRICAL SYSTEMS

1

47584899

WIRE HARNESS

Assy, Top Beam, Incl 2 - 6

1шт.

2

87695623

ELEC. TERMINAL PIN

X-981R, Right Header Height

3шт.

2

87695723

ELEC CONNECTOR,Male , 3 Pole

X-981R, Right Header Height

1шт.

2

87695625

WIRE CONNECTOR,Locking, Green

X-981R, Right Header Height

1шт.

2

84068583

PLUG,12 - 16 Ga, White

X-981RA, Dust Cap For X-981R

3шт.

2

47401934

ELEC CONNECTOR

X-981RA, Dust Cap For X-981R

1шт.

3

87680701

SEAL

X-002, Flasher Light Right

2шт.

3

87692882

ELEC. TERMINAL PIN

X-002, Flasher Light Right

2шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

X-002, Flasher Light Right

1шт.

4

87695623

ELEC. TERMINAL PIN

X-032, Top Beam

10шт.

4

84122362

ELEC CONNECTOR

X-032, Top Beam

1шт.

4

87698541

LOCKING TAB,Wedge Lock, 12-Pin

X-032, Top Beam

1шт.

4

84068583

PLUG,12 - 16 Ga, White

X-032, Top Beam

2шт.

5

87692882

ELEC. TERMINAL PIN

X-001, Flasher Light Left

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

X-001, Flasher Light Left

1шт.

6

87695623

ELEC. TERMINAL PIN

X-981L, Left Header Height

3шт.

6

87695723

ELEC CONNECTOR,Male , 3 Pole

X-981L, Left Header Height

1шт.

6

87695625

WIRE CONNECTOR,Locking, Green

X-981L, Left Header Height

1шт.

6

84068583

PLUG,12 - 16 Ga, White

X-981LA, Dust Cap For X-981L

3шт.

6

47401934

ELEC CONNECTOR

X-981LA, Dust Cap For X-981L

1шт.
