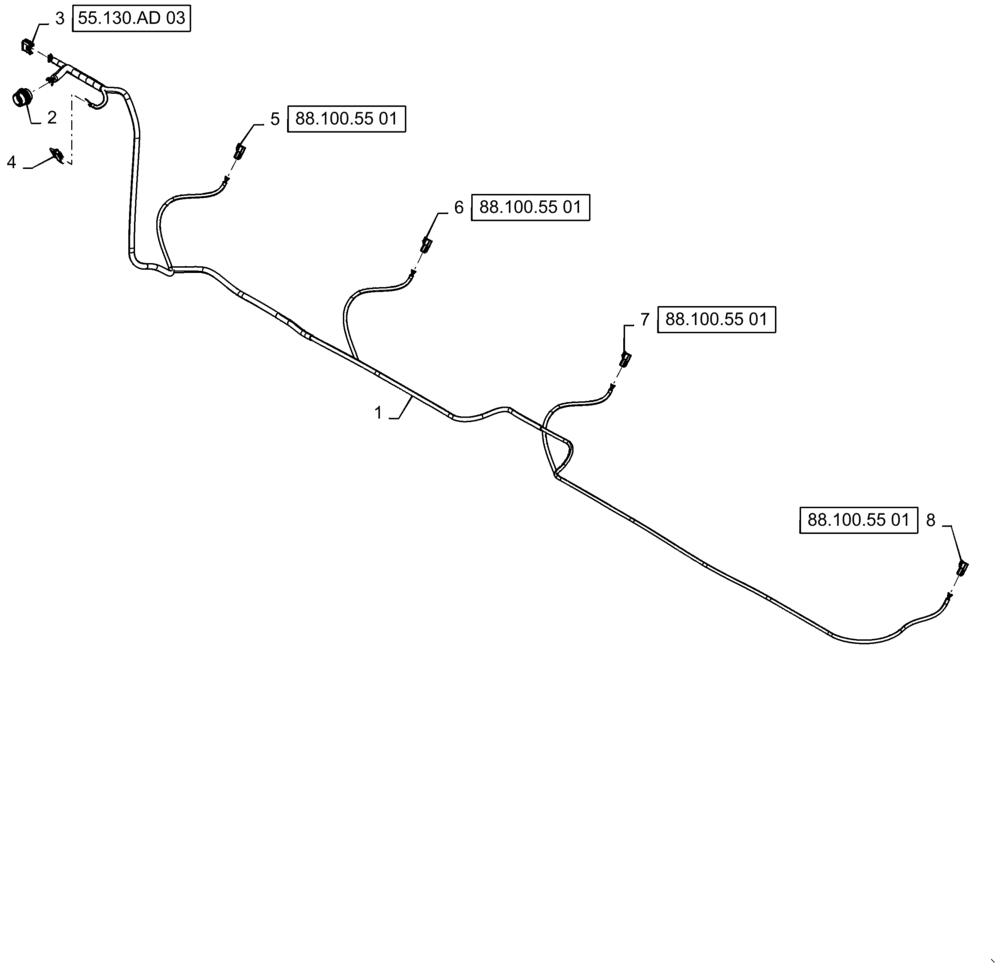

Запчасти Case IH 4416-30 (55.130.AD[02]) - WIRING ASSY, MAIN HARNESS (55) - ELECTRICAL SYSTEMS

1

47564771

WIRE HARNESS

Main, Incl 2 - 8

1шт.

2

87703820

ELEC CONNECTOR

X-920, Feeder, To Combine

1шт.

2

87695623

ELEC. TERMINAL PIN

X-920, Feeder, To Combine

16шт.

2

84068583

PLUG,12 - 16 Ga, White

X-920, Feeder, To Combine

15шт.

3

87696075

ELEC CONNECTOR

X-032, Top Beam

1шт.

3

87695651

LOCKING TAB,Wedge Lock

X-032, Top Beam

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-032, Top Beam

10шт.

3

84068583

PLUG,12 - 16 Ga, White

X-032, Top Beam

2шт.

4

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

X-467, Header Type Module

3шт.

4

87680701

SEAL

X-467, Header Type Module

3шт.

4

87686742

PLUG

X-467, Header Type Module

3шт.

4

87039236

ELEC CONNECTOR

X-467, Header Type Module

1шт.

4

86837775

RESISTOR

X-467, Header Type Module

1шт.

5

87695623

ELEC. TERMINAL PIN

X-981LC, Left Center Header Light

3шт.

5

87695723

ELEC CONNECTOR,Male , 3 Pole

X-981LC, Left Center Header Light

1шт.

5

87695625

WIRE CONNECTOR,Locking, Green

X-981LC, Left Center Header Light

1шт.

5

84068583

PLUG,12 - 16 Ga, White

X-981LCA, Dust Cap For X-981LC

3шт.

5

47401934

ELEC CONNECTOR

X-981LCA, Dust Cap For X-981LC

1шт.

6

87695623

ELEC. TERMINAL PIN

X-981RL, Left Row Guidance

3шт.

6

87695723

ELEC CONNECTOR,Male , 3 Pole

X-981RL, Left Row Guidance

1шт.

6

87695625

WIRE CONNECTOR,Locking, Green

X-981RL, Left Row Guidance

1шт.

6

84068583

PLUG,12 - 16 Ga, White

X-981RLA, Dust Cap Foe X-981RL

3шт.

6

47401934

ELEC CONNECTOR

X-981RLA, Dust Cap Foe X-981RL

1шт.

7

87695623

ELEC. TERMINAL PIN

X-981RR, Right Row Guidance

3шт.

7

87695723

ELEC CONNECTOR,Male , 3 Pole

X-981RR, Right Row Guidance

1шт.

7

87695625

WIRE CONNECTOR,Locking, Green

X-981RR, Right Row Guidance

1шт.

7

84068583

PLUG,12 - 16 Ga, White

X-981RRA, Dust Cap For X-981RR

3шт.

7

47401934

ELEC CONNECTOR

X-981RRA, Dust Cap For X-981RR

1шт.

8

87695623

ELEC. TERMINAL PIN

X-981RC, Right Center Header Height

3шт.

8

87695723

ELEC CONNECTOR,Male , 3 Pole

X-981RC, Right Center Header Height

1шт.

8

87695625

WIRE CONNECTOR,Locking, Green

X-981RC, Right Center Header Height

1шт.

8

84068583

PLUG,12 - 16 Ga, White

X-981RCA, Dust Cap For X-981RC

3шт.

8

47401934

ELEC CONNECTOR

X-981RCA, Dust Cap For X-981RC

1шт.
