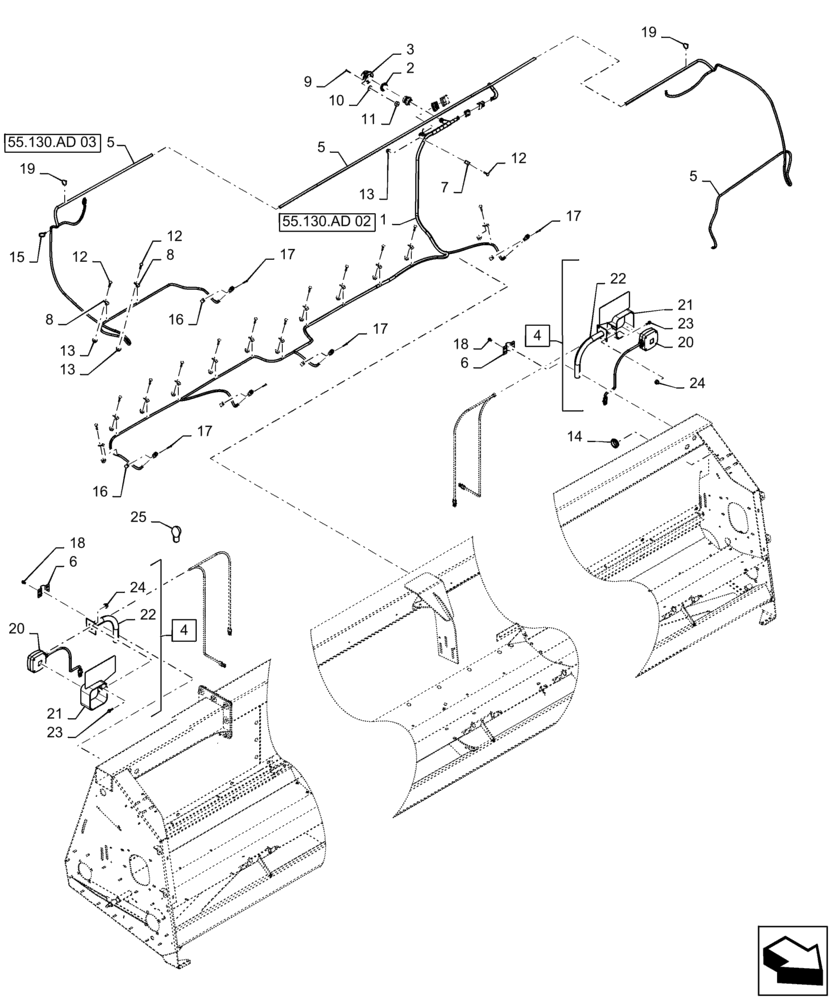

Запчасти Case IH 4416-30 (55.130.AD[01]) - HEADER, ELECTRICAL (55) - ELECTRICAL SYSTEMS

1

47564771

WIRE HARNESS

Main

1шт.

2

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

3

86606228

COVER

Dust

1шт.

4

47554680

BOOM

Assy, Safety Light, Incl 20 - 24

2шт.

5

47584899

WIRE HARNESS

Top Beam

1шт.

6

47640121

CLAMP

2шт.

7

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

6шт.

8

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

18шт.

9

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

10

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

11

86508813

NUT,M5, Cl 8

4шт.

12

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

21шт.

13

86619801

FLANGE NUT,M8 x 1.25, Cl 8

24шт.

14

87423314

GROMMET,1.5" ID x 2.125" ID x 0.562" Thk

2шт.

15

87668737

CABLE TIE,203.2mm L, Nylon, Black

Strap

6шт.

16

87716495

CLAMP

6шт.

17

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

6шт.

18

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

8шт.

19

86566989

CABLE TIE,208mm L

10шт.

20

134454A1

LAMP,Halogen, 12V, 32W, Clear

Assy, Warning Light

1шт.

21

390636A1

BRACKET

Safety Light

1шт.

22

127031A1

SUPPORT

Marker Light

1шт.

23

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

24

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

25

A41264

BULB,#1156, 12V

1шт.
