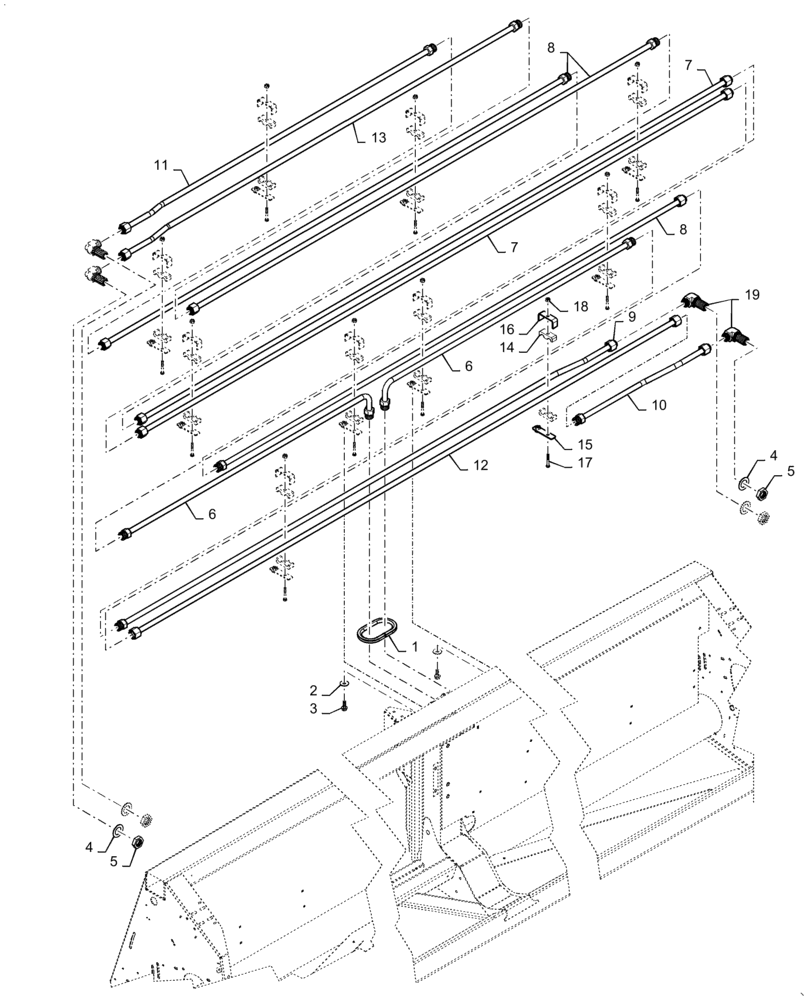

Запчасти Case IH 4416-30 (35.910.AI) - AUGER DRIVE, HYDRAULIC (35) - HYDRAULIC SYSTEMS

1

NH291525

EDGE

Trim

1шт.

2

87013865

WASHER,9mm ID x 28mm OD x 1.6mm Thk

9шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

9шт.

4

86624171

WASHER,1.03" ID x 1.75" OD x 0.06" Thk

4шт.

5

86639085

BHD LOCK NUT,1"-14, Bulkhead

4шт.

6

47395566

HYD TUBE

Assy, LH Auger Divider Supply and RH Auger Divider Return

2шт.

7

84149888

HYD TUBE,16 mm OD x 2990 mm L

Assy, LH to RH Auger Divider Cross Feed and RH Auger Divider Return

2шт.

8

47407820

HYD TUBE

Assy, LH to RH Auger Divider Cross Feed and RH Auger Divider Return

3шт.

9

84169362

TUBE

Assy, LH Auger Divider Supply

1шт.

10

47638605

TUBE

Assy, LH Auger Divider Supply

1шт.

11

47638611

TUBE

Assy, RH Auger Divider Return

1шт.

12

47638607

TUBE

Assy, LH to RH Auger Divider Cross Feed

1шт.

13

47638609

TUBE

Assy, LH to RH Auger Divider Cross Feed

1шт.

14

430356

CLAMP

20шт.

15

84149880

SUPPORT

Hose, Bottom

10шт.

16

84814948

SUPPORT

Hose, Top

10шт.

17

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

10шт.

18

353308

NUT,M6 x 1.0, Cl 8

10шт.

19

87028944

ELBOW,90 Degree, 1"-14 ORFS, Bulkhead

4шт.
