(35.602.AQ) - HOSE ASSY. MULTICOUPLER

Запчасти Case IH 4416-30 (35.602.AQ) - HOSE ASSY. MULTICOUPLER (35) - HYDRAULIC SYSTEMS

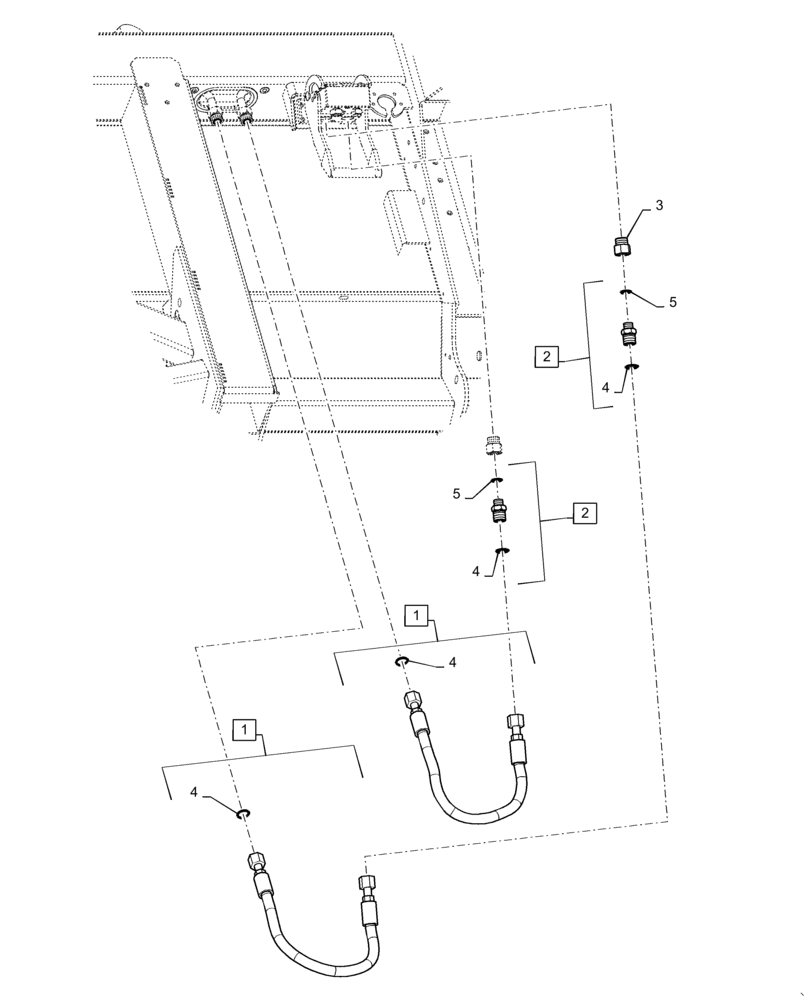

Схема запчастей Case IH 4416-30 - (35.602.AQ) - HOSE ASSY. MULTICOUPLER (35) - HYDRAULIC SYSTEMS
4
4
5
5
4
1
1
2
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47399673

HYDRAULIC HOSE,12.7mm ID x 660mm L, SAE 100R17

Incl 4

2шт.

2

86603051

HYD CONNECTOR,1" - 14 ORFS x 3/4" - 16 ORB

Incl 4 - 5

2шт.

3

84435046

COUPLING

2шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Выбрано товаров: 5
