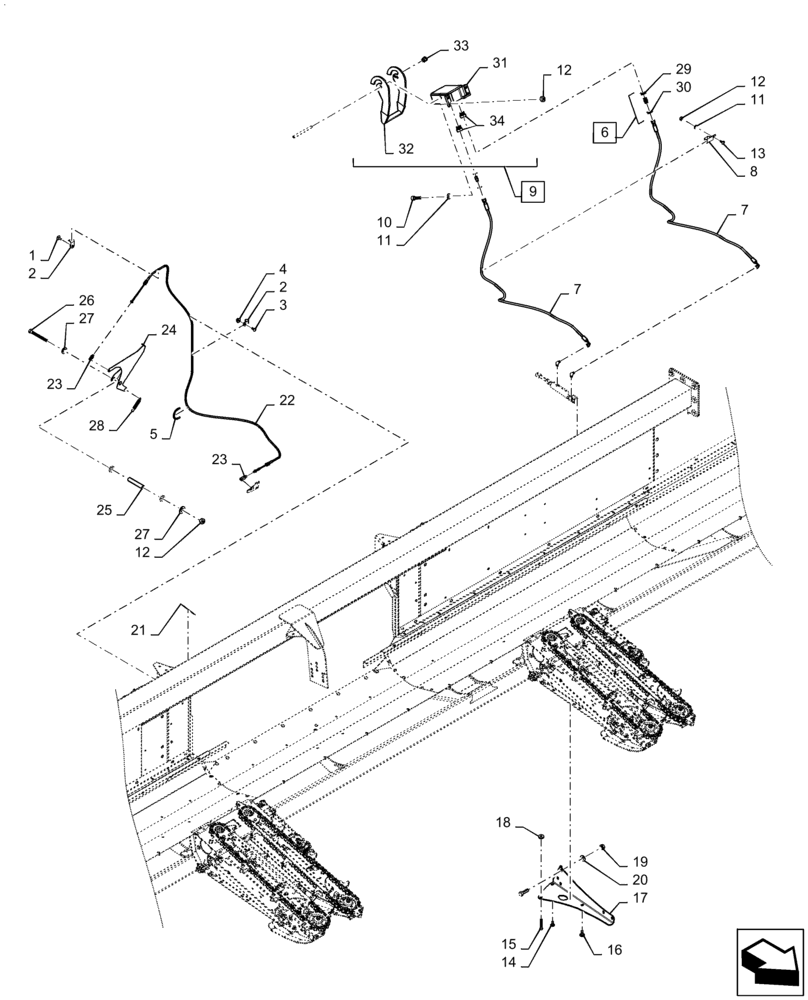

Запчасти Case IH 4416-30 (35.359.AE[02]) - HYDRAULIC, CONTROL, DECK PLATES (35) - HYDRAULIC SYSTEMS

1

9512290

RIVET,Pop, 4.8mm OD x 17.8mm L

1шт.

2

9507809

CLAMP,11.3mm ID, 6.7mm Bolt Hole, P Type

3шт.

3

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

5

NH291525

EDGE

Trim

1шт.

6

86596730

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 29 - 30

2шт.

7

87586105

FLEXIBLE HOSE

2шт.

8

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

9

84435009

COUPLING

Incl 31 - 34

1шт.

10

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

4шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

12

9706690

NUT,M8 x 1.25, Cl 8

9шт.

13

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

14

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

15

87028007

BOLT,Hex, M12 x 95mm, Cl 8.8

1шт.

16

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

17

47576603

SUPPORT

Bottom

1шт.

18

355502120

WASHER

1шт.

19

100016

NUT,M10 x 1.5, Cl 8

6шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

21

322442650

DECAL

Indicator

1шт.

22

322442450

CABLE

Control

1шт.

23

322014450

YOKE,M6

End Cable

1шт.

24

84972793

INDICATOR

Hydraulic Deck Plate Position

1шт.

25

322442550

SPACER

1шт.

26

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

1шт.

27

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

350356531

SPRING

Indicator

1шт.

29

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

84435044

GUARD

Protection Cover

1шт.

32

86623901

HANDLE

Coupling

1шт.

33

86623902

LATCH

Assy

1шт.

34

84435047

COUPLING, QUICK, FEM

2шт.
