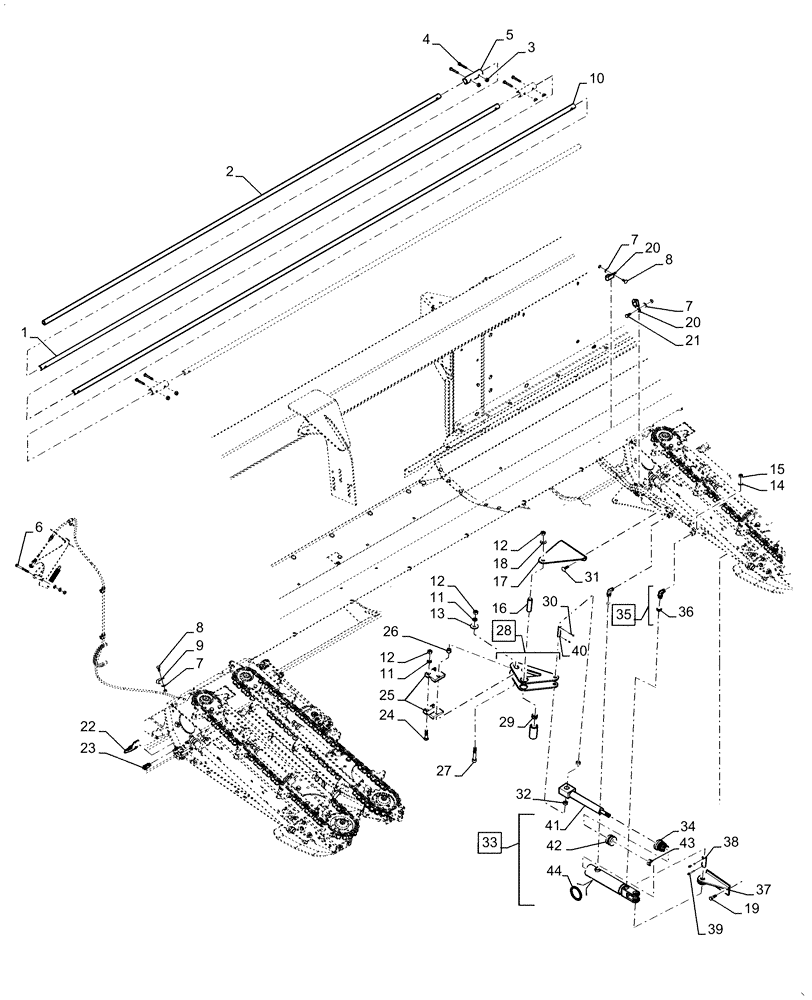

Запчасти Case IH 4416-30 (35.359.AE[01]) - HYDRAULIC, CONTROL, DECK PLATES (35) - HYDRAULIC SYSTEMS

1

47576940

TUBE

Center

1шт.

2

87395830

ROD

Out

2шт.

3

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

4

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

6шт.

5

84977334

ADAPTER

3шт.

6

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

9

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

10

87395828

ROD

Center

1шт.

11

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

3шт.

12

9706685

NUT,M12 x 1.75, Cl 8

4шт.

13

87016607

WASHER,13.5mm ID x 37mm OD x 3mm Thk

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

15

100016

NUT,M10 x 1.5, Cl 8

2шт.

16

322424550

SPACER

1шт.

17

47468565

SUPPORT

Top

1шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

20

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

22

84245559

HOLDER

1шт.

23

322014450

YOKE,M6

Feed Fork

1шт.

24

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

25

84271820

HOLDER

2шт.

26

322424850

BUSHING

Rocker Arm

1шт.

27

86512143

HEX SOC SCREW,M12 x 1.75 x 70mm, Cl 12.9, Full Thd

1шт.

28

47576606

ARM

Incl 29

1шт.

29

322426050

BUSHING

1шт.

30

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

31

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

32

87573510

BUSHING

2шт.

33

87029738

HYDRAULIC CYLINDER,19.05mm Rod, 101.6mm Stroke

Incl 34, 41 - 44

1шт.

34

87029765

CYLINDER END CAP

1шт.

35

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 36

2шт.

36

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

37

87573506

SUPPORT

1шт.

38

86596042

PIN,19.05mm OD x 57.2mm L

1шт.

39

412686

COTTER PIN,M5 x 32

2шт.

40

322424750

PIN

1шт.

41

87030036

ROD

1шт.

42

87029766

PISTON,1/2" ID x 1-1/2" OD x 1/2" Thk

1шт.

43

9802182

LOCK NUT,1/2"-20, GB

1шт.

44

87029768

SEAL KIT

1шт.
