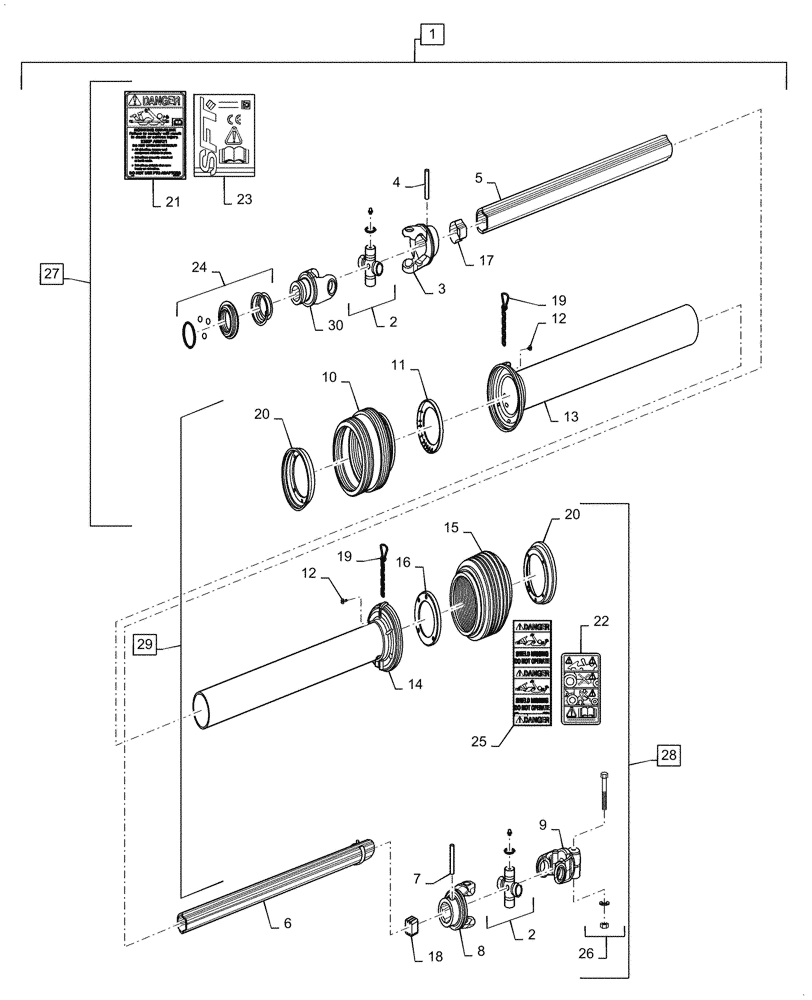

Запчасти Case IH 4416-30 (31.100.AG[03]) - PTO SHAFT ASSY, CHOPPING, ASN YGH632500 (31) - IMPLEMENT POWER TAKE OFF

1

47909428

SHAFT

Chopping PTO Assy, Incl 2 - 30

1шт.

2

47821966

CROSS

Kit

2шт.

3

47821967

YOKE

Outer Tube

1шт.

4

47821970

COTTER PIN

1шт.

5

47949563

TUBE

Cardan

1шт.

6

47949565

TUBE

Cardan

1шт.

7

47821975

COTTER PIN

1шт.

8

47821976

YOKE

Tube

1шт.

9

47821982

YOKE

1шт.

10

47927219

SHIELD

Cone, Bell

1шт.

11

47821985

SHIELD

Support, Outer

1шт.

12

86625168

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

8шт.

13

47949567

SHIELD

Tube, Outer Cone

1шт.

14

47949569

SHIELD

Tube, Inner Cone

1шт.

15

47927222

SHIELD

Cone, Bell

1шт.

16

47821996

SHIELD

Support

1шт.

17

48046523

PLUG

Cardan Tube, Outer

1шт.

18

48046566

PLUG

Cardan Tube, Outer

1шт.

19

47651465

CHAIN

Shield, W/Spring Link

2шт.

20

47912324

SHIELD

Intermediate

2шт.

21

849471

DANGER DECAL

Outer Drive Tube

1шт.

22

86520950

DECAL

CE Outer Shield Tube

1шт.

23

47651468

INSTRUCTION

Booklet CE

1шт.

24

87558192

REPAIR KIT

1 - 3/8"

1шт.

25

849472

DANGER DECAL

Outer Shield Tube

1шт.

26

47821998

SCREW

1шт.

27

47949575

SHAFT

Outer Half

1шт.

28

47949580

SHAFT

Inner Half

1шт.

29

48046571

KIT

Shield

1шт.

30

47949561

YOKE

1 - 3/8

1шт.
