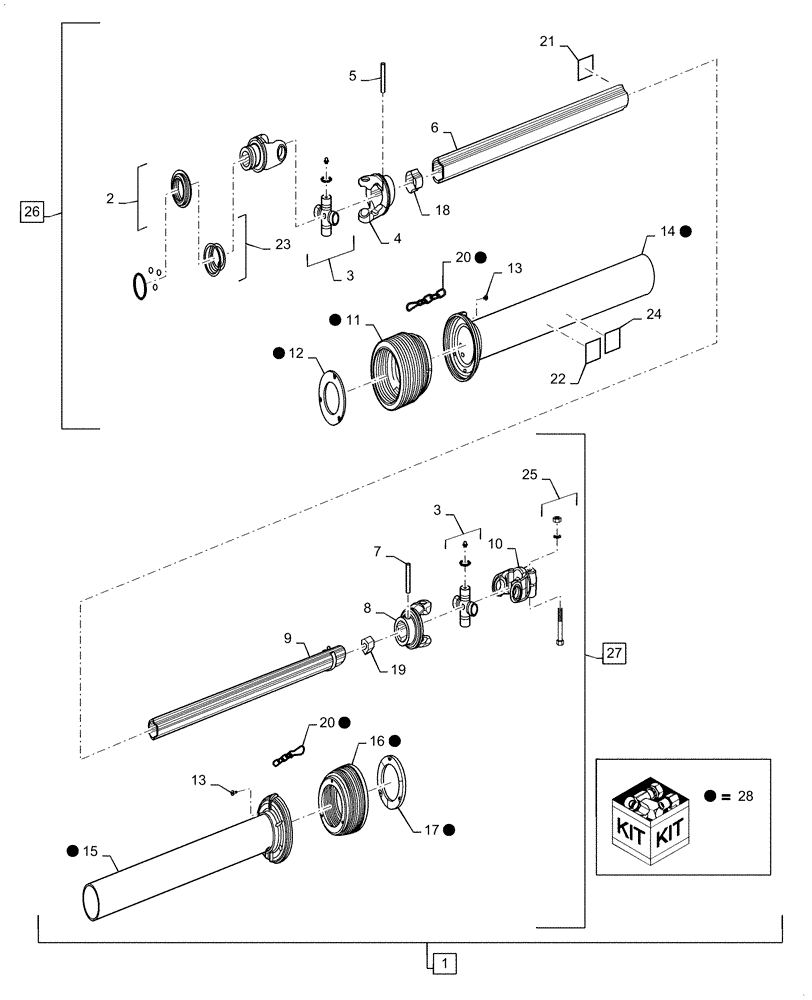

Запчасти Case IH 4416-30 (31.100.AG[02]) - RH PTO SHAFT ASSY (31) - IMPLEMENT POWER TAKE OFF

1

47578464

PTO SHAFT

Assy, RH, Incl 2 - 28

1шт.

2

47651451

YOKE

Automoatic

1шт.

3

ZA105853

KIT

Cross

2шт.

4

47651452

TUBE

Yoke, Outer

1шт.

5

84976975

ROLL PIN

Flexible

1шт.

6

47651454

TUBE

Drive, Outer

1шт.

7

84036368

ROLL PIN

Flexible

1шт.

8

47651455

TUBE

Yoke, Outer

1шт.

9

47651456

TUBE

Drive, Inner

1шт.

10

47651457

YOKE

Hex Clamp Bolt

1шт.

11

47651459

CONE

Shield Bell

1шт.

12

87517831

BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm

1шт.

13

86625168

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

14

47651460

SHIELD

Tube and Base Cone Outer

1шт.

15

47651461

SHIELD

Tube and Base Cone Inner

1шт.

16

47651462

CONE

Shield Bell

1шт.

17

86979196

BEARING,86mm ID x 132mm OD x 12mm H

1шт.

18

47651463

PLUG

Tube, Outer

1шт.

19

47651464

PLUG

Tube, Inner

1шт.

20

47651465

CHAIN

Chain W/ Spring Link

2шт.

21

849471

DANGER DECAL

Inner Drive Tube

1шт.

22

849472

DANGER DECAL

Outer Shield Tube

1шт.

23

87558192

REPAIR KIT

Ball Collar 1 - 3/8" Automatic

1шт.

24

86520950

DECAL

Danger, Outer Shield Tube

1шт.

25

87685060

BOLT

1шт.

26

47651470

HALF SHAFT

Outer, Incl 2 - 6, 11 - 14, 18, 20 - 24

1шт.

27

47651471

HALF SHAFT

Inner, Incl 3, 7 - 10, 13, 15 - 17, 20, 25

1шт.

28

47651472

SHIELD

Kit, Incl 11 - 17, 20

1шт.
