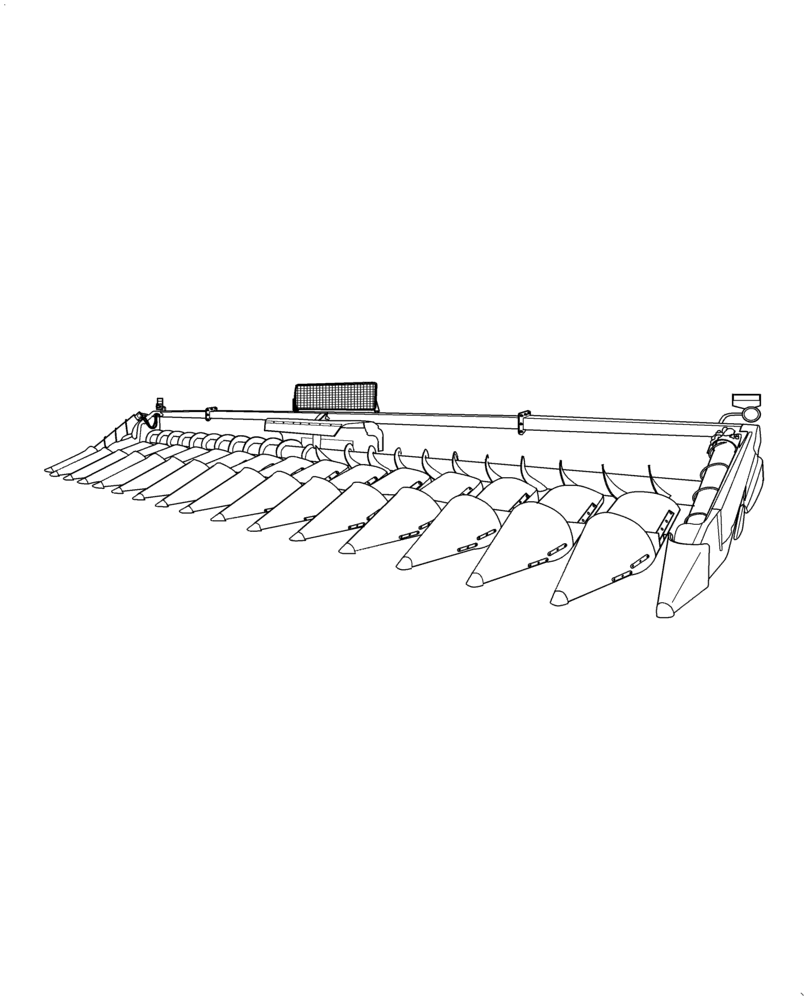

Запчасти Case IH 4416-30 (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

1

84251979

GATHERING CHAIN,2254.92mm L

8 Paddle Chain

2шт.

2

86616339

SENSOR,CCW

AHHC

1шт.

3

87473652

DRIVEN SPROCKET

Gathering Chain

1шт.

4

84977612

SLIDING PAD

Gathering Chain

2шт.

5

84977235

SPROCKET,DRIVE

Gathering Chain

1шт.

6

84972758

STEEL PLATE

RH, Upper

1шт.

7

47474090

PLATE

LH, Upper

1шт.

8

47483715

FLAP

Divider, Ear Saver, 30" Spacing

5шт.

9

47515996

FLAP

Outer Divider, Ear Saver

5шт.

10

84499693

KNIFE

Stalk Roll

4шт.

11

47358205

WEAR STRIP

Hood

1шт.

12

47358208

WEAR STRIP

Divider

2шт.

13

84558101

GAS STRUT

1шт.

14

84972762

CLUTCH

Radial Pin, Row Unit

1шт.

15

47468213

CROP DIVIDER

1шт.

16

47386730

CROP DIVIDER

RH, Outer

1шт.

17

84526077

CROP DIVIDER

LH, Outer

1шт.

18

47582623

CHAIN

A80 - 2

1шт.

19

47583574

CHAIN

Auger Drive

2шт.

20

87284076

CHAIN

Auger Drive

2шт.

21

340437629

CHAIN,60-2, 14 Links x 19.05mm = 266.7mm

Coupling

2шт.

22

87029768

SEAL KIT

Stripper Plate Cylinder

1шт.

23

84002007

BALL BEARING,35mm ID x 72mm OD x 17mm W

Auger

2шт.

24

84531925

POINT

Divider

2шт.

25

84977588

GASKET

Chain Case

1шт.

26

47716689

BALL BEARING

Drive Shaft, 100 mm

5шт.

27

47649085

FLANGE

100 mm Bearing

5шт.
