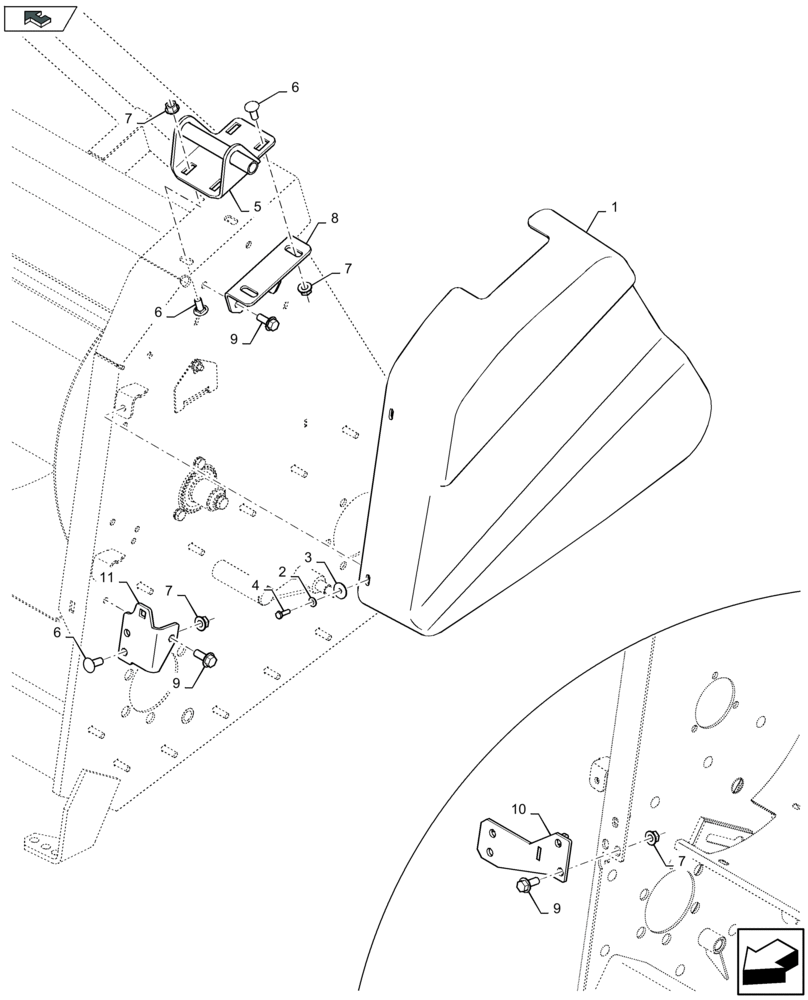

Запчасти Case IH 4412F-30 (58.208.120) - SIDE SHIELDING, LH & RH (58) - ATTACHMENTS/HEADERS

1

47377242

COVER

LH

1шт.

FOR 4406F-80, 4408F-75, 4408F-80 AND 4412F-30 ONLY

1шт.

1

84526082

COVER

LH

1шт.

FOR 4406F-75 AND 4408F-30 ONLY

1шт.

1

47377240

COVER

RH

1шт.

FOR 4406F-75 ONLY

1шт.

1

84526089

COVER

RH

1шт.

FOR 4406F-80, 4412F-30 AND 4408F-30 ONLY

1шт.

1

84526088

COVER

RH

1шт.

FOR 4408F-75 ONLY

1шт.

1

47601839

COVER

RH

1шт.

FOR 4408F-80 ONLY

1шт.

2

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

8шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

5

47540056

SUPPORT

LH, Serial Range: -C661

1шт.

FOR 4406F-75 ONLY

1шт.

5

47701143

SUPPORT

LH, Start Serial: D662

1шт.

FOR 4406F-75 ONLY

1шт.

5

47359994

SUPPORT

LH

1шт.

FOR 4406F-80, 4408F-75, 4408F-80 AND 4412F-30 ONLY

1шт.

5

47540050

SUPPORT

RH, Serial Range: -C661

1шт.

FOR 4406F-75 ONLY

1шт.

5

47702348

SUPPORT

RH, Start Serial: D662

1шт.

FOR 4406F-75 ONLY

1шт.

5

47360000

SUPPORT

RH

1шт.

FOR 4406F-80, 4408F-80, 4412F-30 AND 4408F-30 ONLY

1шт.

5

47359994

SUPPORT

RH

1шт.

FOR 4408F-75 ONLY

1шт.

5

47721501

SUPPORT

LH, Start Serial: D670

1шт.

FOR 4408F-30 ONLY

1шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

8шт.

FOR 4406F-75, 4406F-80, 4408F-75 AND 4412F-30 ONLY

1шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

, Serial Range: -C669

10шт.

FOR 4408F-80 ONLY

1шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

, Start Serial: D670

11шт.

FOR 4408F-80 ONLY

1шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

, Start Serial: D670

9шт.

FOR 4408F-30 ONLY

1шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

FOR 4406F-75, 4406F-80, 4408F-75 AND 4412F-30 ONLY

1шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

, Serial Range: -C669

12шт.

FOR 4408F-80 ONLY

1шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

, Start Serial: D670

13шт.

FOR 4408F-80 ONLY

1шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

, Start Serial: D670

10шт.

FOR 4408F-30 ONLY

1шт.

8

47365204

SUPPORT

2шт.

FOR 4406F-75, 4406F-80, 4408F-75 AND 4412F-30 ONLY

1шт.

8

47365204

SUPPORT

LH

1шт.

FOR 4408F-80 ONLY

1шт.

8

47365199

SUPPORT

RH

1шт.

FOR 4408F-80 ONLY

1шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

FOR 4406F-75, 4406F-80 AND 4412F-30 ONLY

1шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

5шт.

FOR 4408F-75 ONLY

1шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

, Serial Range: -C669

7шт.

FOR 4408F-80 ONLY

1шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

, Start Serial: D670

8шт.

FOR 4408F-80 ONLY

1шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

, Start Serial: D670

7шт.

FOR 4408F-30 ONLY

1шт.

10

47441284

SUPPORT

RH

1шт.

FOR 4408F-75 ONLY

1шт.

10

47449634

SUPPORT

RH

1шт.

FOR 4408F-80 ONLY

1шт.

11

47727504

SUPPORT

, Start Serial: D670

1шт.

FOR 4408F-80 ONLY

1шт.

11

47727434

BRACKET

, Start Serial: D670

1шт.

FOR 4408F-30 ONLY

1шт.

11

47724934

SUPPORT

, Start Serial: D670

1шт.

FOR 4408F-30 ONLY

1шт.
