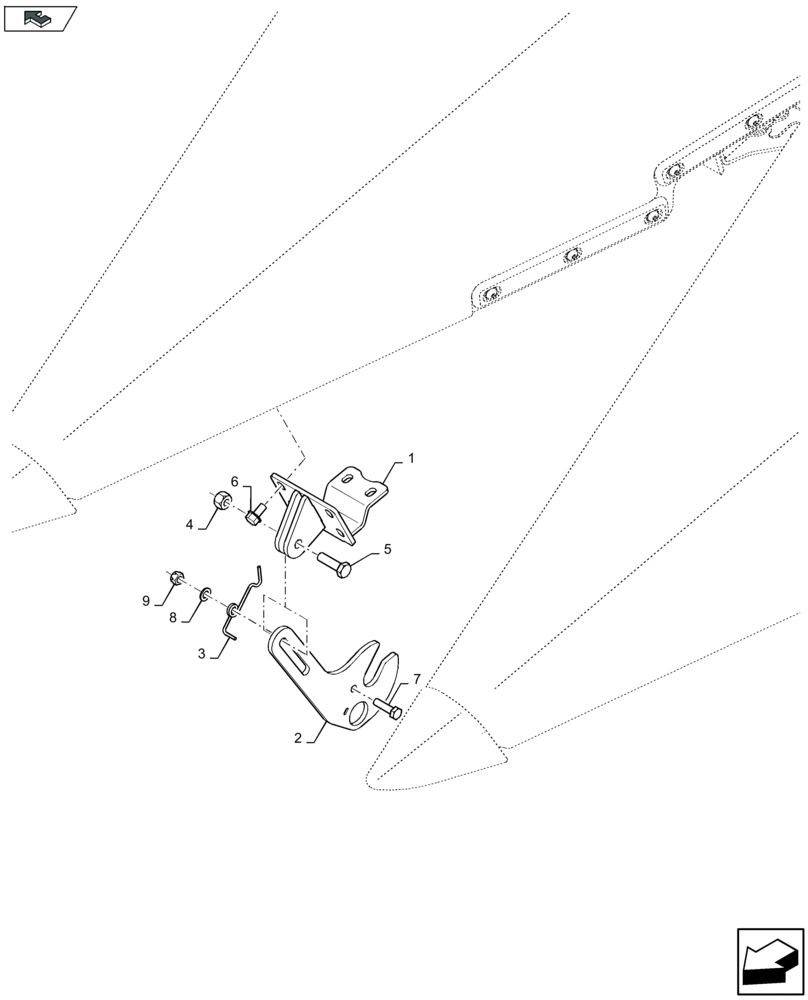

Запчасти Case IH 4412F-30 (58.130.391) - DIVIDER HOOK - D658 (58) - ATTACHMENTS/HEADERS

1

47672919

SUPPORT

1шт.

2

47546203

HOOK

1шт.

3

47546118

TORSION SPRING

1шт.

4

412141

NUT,M10 x 1.5, Cl 8

1шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

6

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

7

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

8

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.
