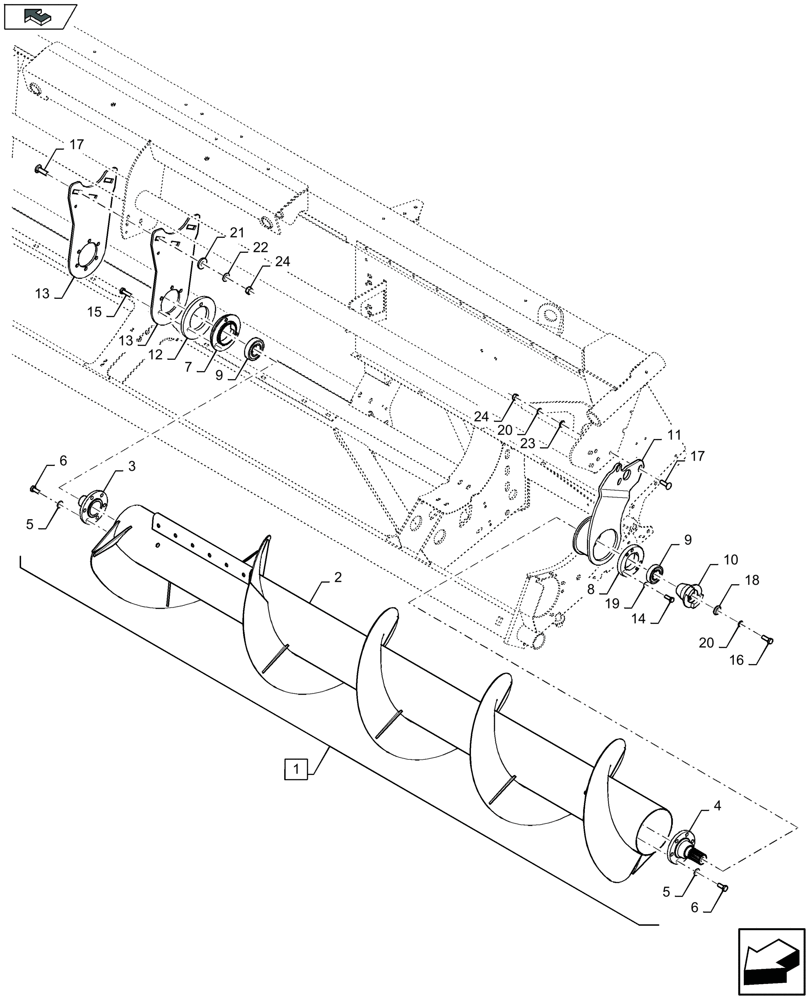

Запчасти Case IH 4412F-30 (58.120.050) - CENTRAL AUGER, LH & RH (58) - ATTACHMENTS/HEADERS

1

47382988

AUGER

LH, Incl 2 - 6, Serial Range: -C669

1шт.

1

47708166

AUGER

LH, Incl 2 - 6, Start Serial: D670

1шт.

1

47382990

AUGER

RH, Incl 2 - 6, Serial Range: -C669

1шт.

1

47708171

AUGER

RH, Incl 2 - 6, Start Serial: D670

1шт.

2

47382989

AUGER

LH, Serial Range: -C669

1шт.

2

47707010

AUGER

LH, Start Serial: D670

1шт.

2

47382992

AUGER

RH, Serial Range: -C669

1шт.

2

47707012

AUGER

RH, Start Serial: D670

1шт.

3

84977176

SHAFT

1шт.

MAINTENANCE PART

1шт.

4

322529450

SHAFT

1шт.

MAINTENANCE PART

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

12шт.

7

321140350

FLANGE

2шт.

8

321139050

SUPPORT

2шт.

9

84002007

BALL BEARING,35mm ID x 72mm OD x 17mm W

4шт.

MAINTENANCE PART

1шт.

10

84976905

HUB

2шт.

MAINTENANCE PART

1шт.

11

84976199

SUPPORT

LH

1шт.

11

84976197

SUPPORT

RH

1шт.

12

87737509

STEEL PLATE

2шт.

13

47526072

SUPPORT

2шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

15

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

16

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

17

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

6шт.

18

84604492

WASHER

1шт.

19

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

, Serial Range: -C669

6шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Start Serial: D670

6шт.

20

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

, Serial Range: -C669

8шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Start Serial: D670

6шт.

21

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

3шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

23

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

, Serial Range: -C669

6шт.

23

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

, Start Serial: D670

6шт.

24

9706685

NUT,M12 x 1.75, Cl 8

6шт.
