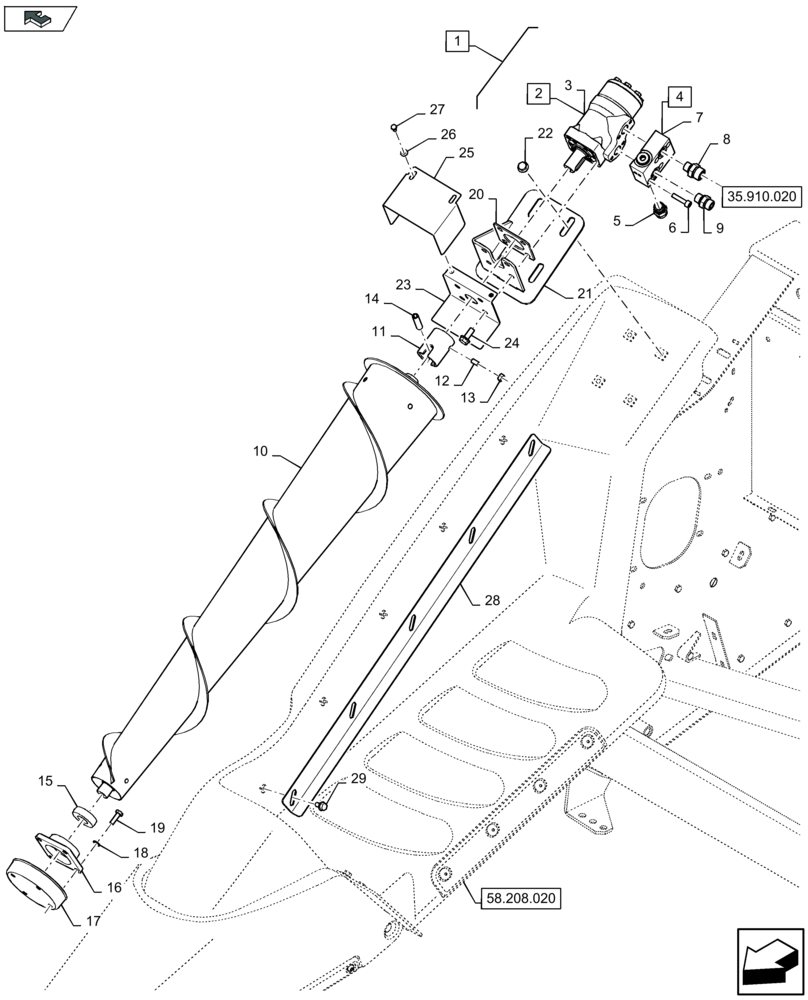

Запчасти Case IH 4412F-30 (35.910.015) - HYDRAULIC SIDE DIVIDER WITH DAN-FOSS MOTOR ONLY, LH & RH (35) - HYDRAULIC SYSTEMS

1

47627640

HYDRAULIC MOTOR

Incl 2 - 9, LH

1шт.

1

47627639

HYDRAULIC MOTOR

Incl 2 - 9, RH

1шт.

2

47609309

HYDRAULIC MOTOR

Incl 3, LH

1шт.

2

47609308

HYDRAULIC MOTOR

Incl 3, RH

1шт.

3

47631007

SEAL KIT

1шт.

4

47609314

VALVE, PRESSURE CONT

Incl 5 - 7

1шт.

5

47610518

VALVE PRESSURE RELIE

1шт.

6

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

4шт.

7

87646090

SEAL KIT

1шт.

8

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

1шт.

9

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

10

84540202

AUGER

LH

1шт.

10

84540200

AUGER

RH

1шт.

11

84278079

COUPLING

1шт.

MAINTENANCE PART

1шт.

12

300477

SET SCREW,M8 x 16mm

1шт.

13

9706690

NUT,M8 x 1.25, Cl 8

1шт.

14

278910

LOCK PIN,12mm OD x 55mm L, Slotted

1шт.

15

340411236

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

MAINTENANCE PART

1шт.

16

47377254

HOUSING

1шт.

17

84278072

PROTECTION PLATE

1шт.

18

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

20

84198833

SPACER

1шт.

21

47482848

MOUNT

LH

1шт.

21

47482835

MOUNT

RH

1шт.

22

87646158

BOLT,Hex, M10 x 15mm, Cl 8.8

4шт.

23

47410532

SHIELD

1шт.

24

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

25

47410536

SHIELD

1шт.

25

47558850

SHIELD

1шт.

FOR TALL CORN ATTACHMENT ONLY

1шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

27

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

28

47585598

STRIPPER

1шт.

29

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.
