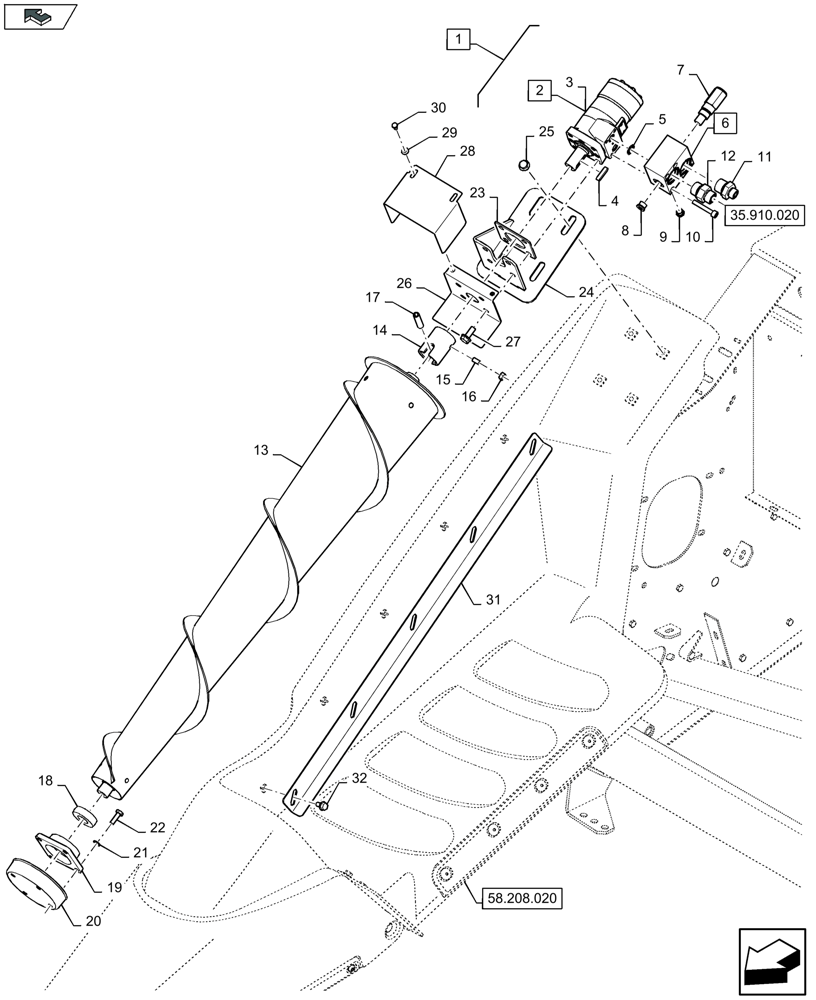

Запчасти Case IH 4412F-30 (35.910.010) - HYDRAULIC SIDE DIVIDERS WITH EATON MOTOR ONLY - LH & RH (35) - HYDRAULIC SYSTEMS

1

84142006

HYDRAULIC MOTOR

Incl 2 - 12, LH

1шт.

1

84142005

HYDRAULIC MOTOR

Incl 2 - 12, RH

1шт.

2

84142008

HYDRAULIC MOTOR

Incl 3 - 4, LH

1шт.

2

84142007

HYDRAULIC MOTOR

Incl 3 - 4, RH

1шт.

3

9807617

SEAL KIT

1шт.

4

170030

KEY,8mm x 7mm x 32mm

1шт.

5

272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

6

87641223

VALVE

Incl 7 - 9

1шт.

7

87645709

VALVE

1шт.

8

218-5208

PLUG,Hex, 1/2"-20 ORB

1шт.

9

218-5209

PLUG,Hex, 9/16"-18 ORB

1шт.

10

73170457

HEX SOC SCREW,M8 x 50mm, Cl 8.8

4шт.

11

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

1шт.

12

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

1шт.

13

84540202

AUGER

LH

1шт.

13

84540200

AUGER

RH

1шт.

14

84278079

COUPLING

1шт.

MAINTENANCE PART

1шт.

15

300477

SET SCREW,M8 x 16mm

1шт.

16

9706690

NUT,M8 x 1.25, Cl 8

1шт.

17

278910

LOCK PIN,12mm OD x 55mm L, Slotted

1шт.

18

340411236

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

MAINTENANCE PART

1шт.

19

47377254

HOUSING

1шт.

20

84278072

PROTECTION PLATE

1шт.

21

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

22

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

23

84198833

SPACER

1шт.

24

47482848

MOUNT

LH

1шт.

24

47482835

MOUNT

RH

1шт.

25

87646158

BOLT,Hex, M10 x 15mm, Cl 8.8

4шт.

26

47410532

SHIELD

1шт.

27

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

28

47410536

SHIELD

1шт.

28

47558850

SHIELD

1шт.

FOR TALL CORN ATTACHMENT ONLY

1шт.

29

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

30

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

31

47585598

STRIPPER

1шт.

32

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.
