(35.660.080) - HYDRAULIC FLIP UP TUBES FROM LH VALVE TO RH VALVE

Запчасти Case IH 4412F-30 (35.660.080) - HYDRAULIC FLIP UP TUBES FROM LH VALVE TO RH VALVE (35) - HYDRAULIC SYSTEMS

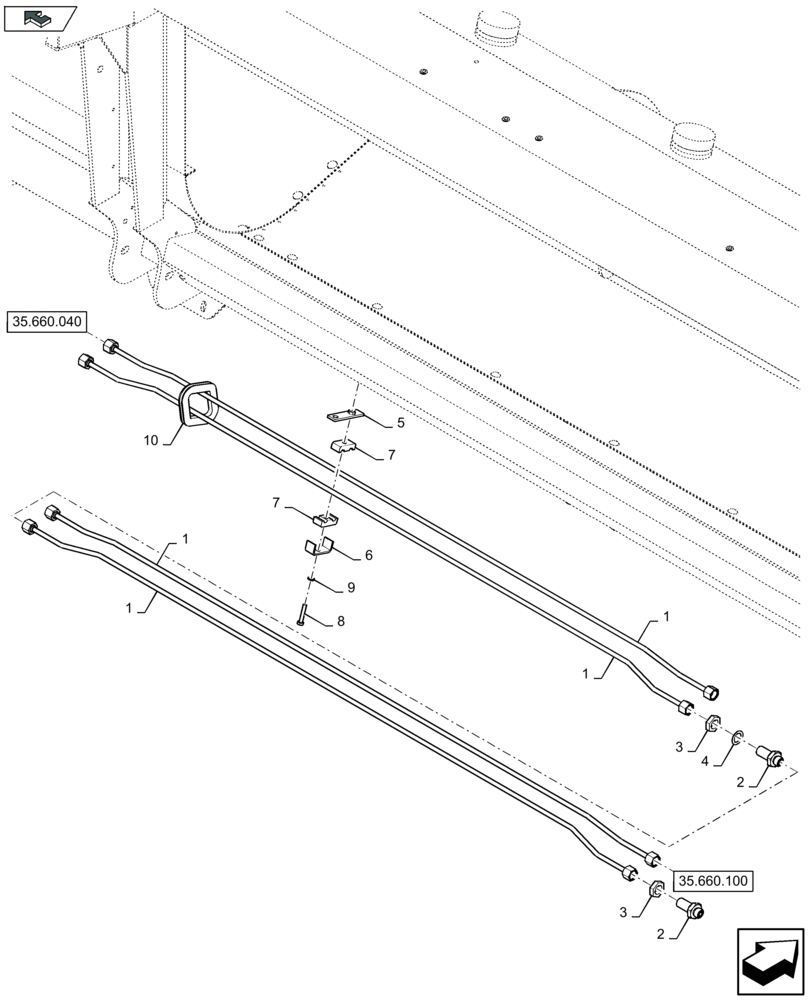

Схема запчастей Case IH 4412F-30 - (35.660.080) - HYDRAULIC FLIP UP TUBES FROM LH VALVE TO RH VALVE (35) - HYDRAULIC SYSTEMS
6
35.660.040
5
7
3
2
home
1
2
35.660.100
1
3
1
1
7
4
8
10
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47380827

HYD TUBE

4шт.

2

86978770

UNION,11/16"-6, ORFS

4шт.

3

87010704

BHD LOCK NUT,11/16"-16

4шт.

4

47382315

WASHER

2шт.

5

84603474

SUPPORT

4шт.

6

431941

SUPPORT

4шт.

7

430357

CLAMP

8шт.

8

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

4шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

10

401108

PROTECTION STRIP,25000mm L

L=0.24M

2шт.
