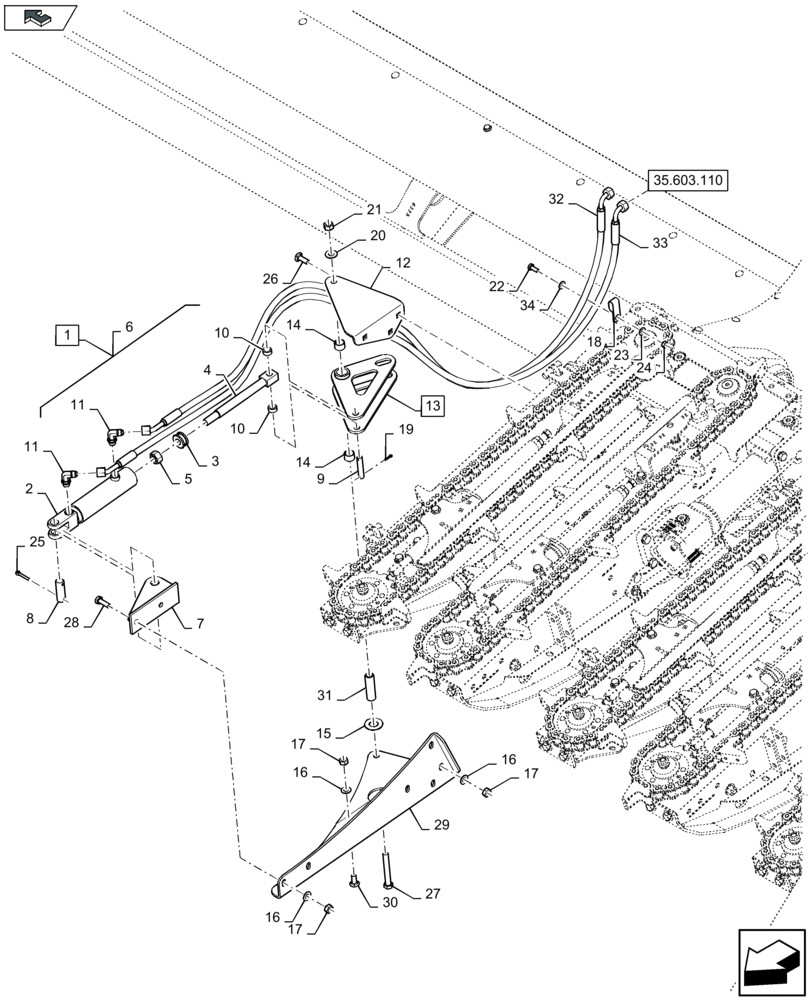

Запчасти Case IH 4412F-30 (35.603.070) - DECK/STRIPPER PLATES CONTROL (35) - HYDRAULIC SYSTEMS

1

87029738

HYDRAULIC CYLINDER,19.05mm Rod, 101.6mm Stroke

Incl 2 - 6

1шт.

2

87029765

CYLINDER END CAP

1шт.

3

87029766

PISTON,1/2" ID x 1-1/2" OD x 1/2" Thk

1шт.

4

87030036

ROD

1шт.

5

9802182

LOCK NUT,1/2"-20, GB

1шт.

6

87029768

SEAL KIT

1шт.

7

87573506

SUPPORT

1шт.

8

86596042

PIN,19.05mm OD x 57.2mm L

1шт.

9

322424750

PIN

1шт.

10

87573510

BUSHING

2шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

12

47468565

SUPPORT

1шт.

13

47576606

ARM

Incl 14

1шт.

14

322426050

BUSHING

2шт.

15

355502120

WASHER

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

17

100016

NUT,M10 x 1.5, Cl 8

8шт.

18

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

19

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

21

9706685

NUT,M12 x 1.75, Cl 8

1шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

24

9706690

NUT,M8 x 1.25, Cl 8

4шт.

25

412686

COTTER PIN,M5 x 32

2шт.

26

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

27

120124

SCREW,Hex, M12 x 1.75 x 90mm, Cl 8.8, Full Thd

1шт.

28

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

29

47576603

SUPPORT

1шт.

30

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

31

322424550

SPACER

1шт.

32

47380873

HYDRAULIC HOSE,6.35mm ID x 1887mm L, SAE 100R16

1шт.

33

47380874

HYDRAULIC HOSE,6.35mm ID x 1744mm L, SAE 100R16

1шт.

34

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
