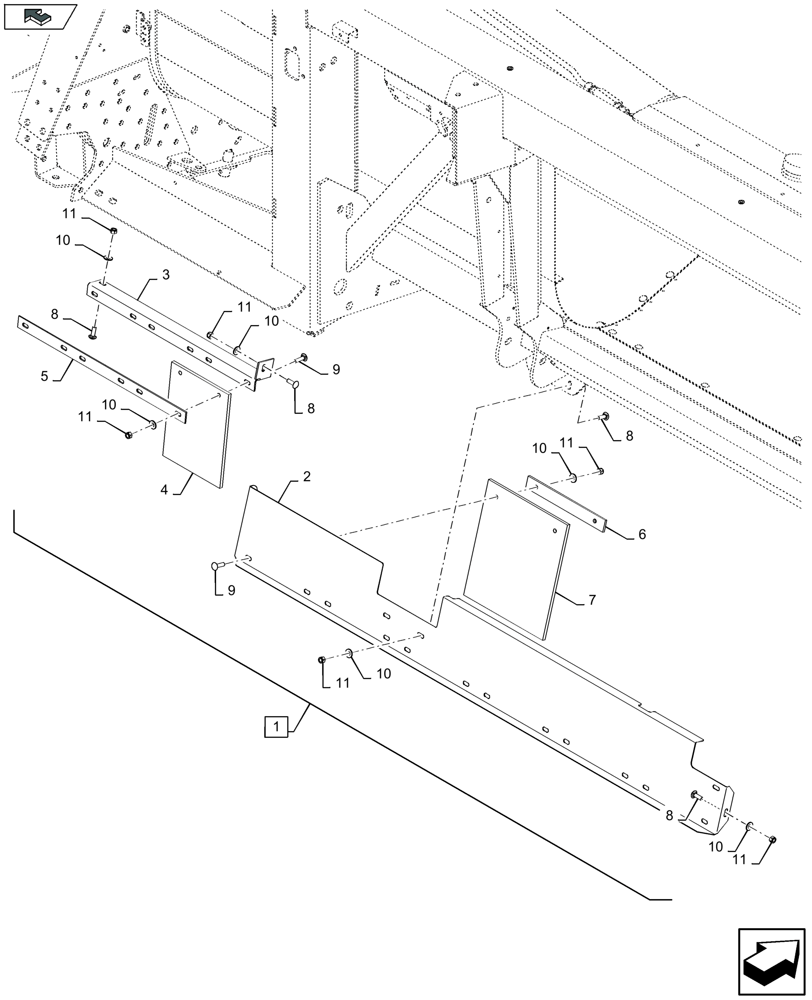

Запчасти Case IH 4412F-30 (88.058.029[03]) - DIA KIT : STALKCHOPPER KIT (88) - ACCESSORIES

1

47376615

DIA KIT, HARVESTER

Incl 2 - 11

1шт.

2

47550521

PLATE

RH

1шт.

2

47550517

PLATE

LH

1шт.

3

47550507

SUPPORT

LH

1шт.

3

47550526

SUPPORT

RH

1шт.

4

47551130

CANVAS

6шт.

5

47550117

MOUNTING PLATE

2шт.

6

84977660

FIXING PLATE

12шт.

7

47547660

CANVAS

12шт.

8

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

15шт.

9

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

34шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

51шт.

11

86629542

NUT,M8 x 1.25, Cl 8.8

51шт.
