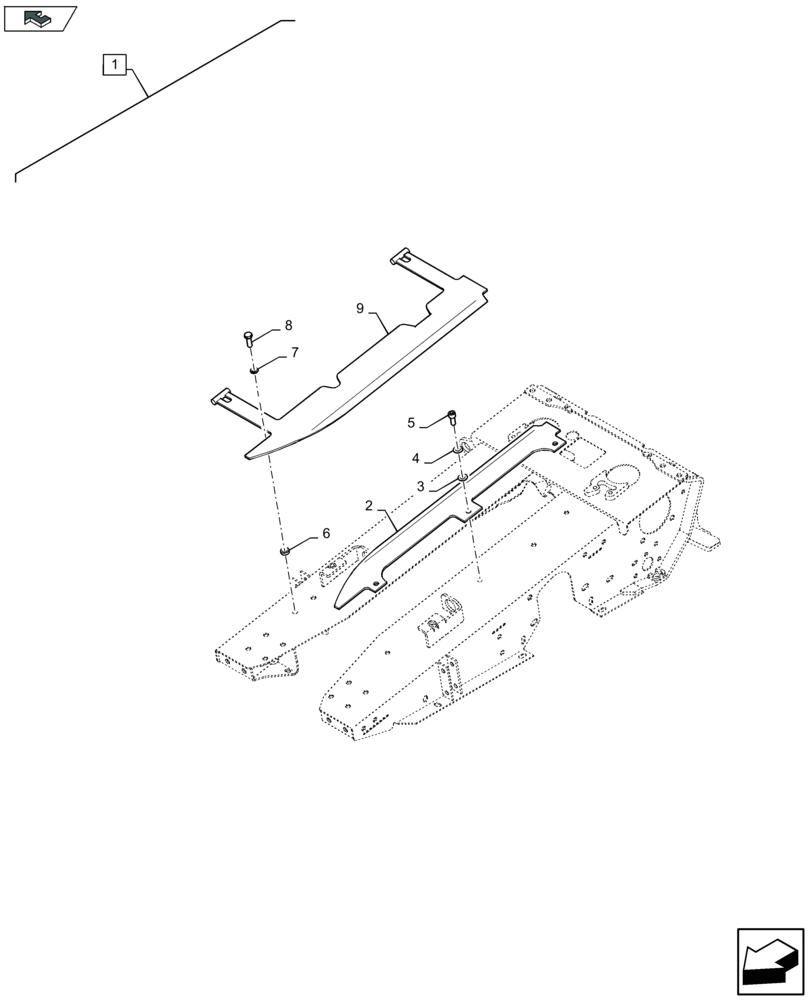

Запчасти Case IH 4412F-30 (88.058.021) - SERVICE KIT : STALK ROLL SHIELD (88) - ACCESSORIES

1

47841053

Incl 2 - 9

1шт.

2

47474090

PLATE

1шт.

3

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

3шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

5

86508097

HEX SOC SCREW,M10 x 25mm, Cl 12.9, Full Thd

3шт.

6

84977214

BUSHING

4шт.

7

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

9

84972758

STEEL PLATE

1шт.
