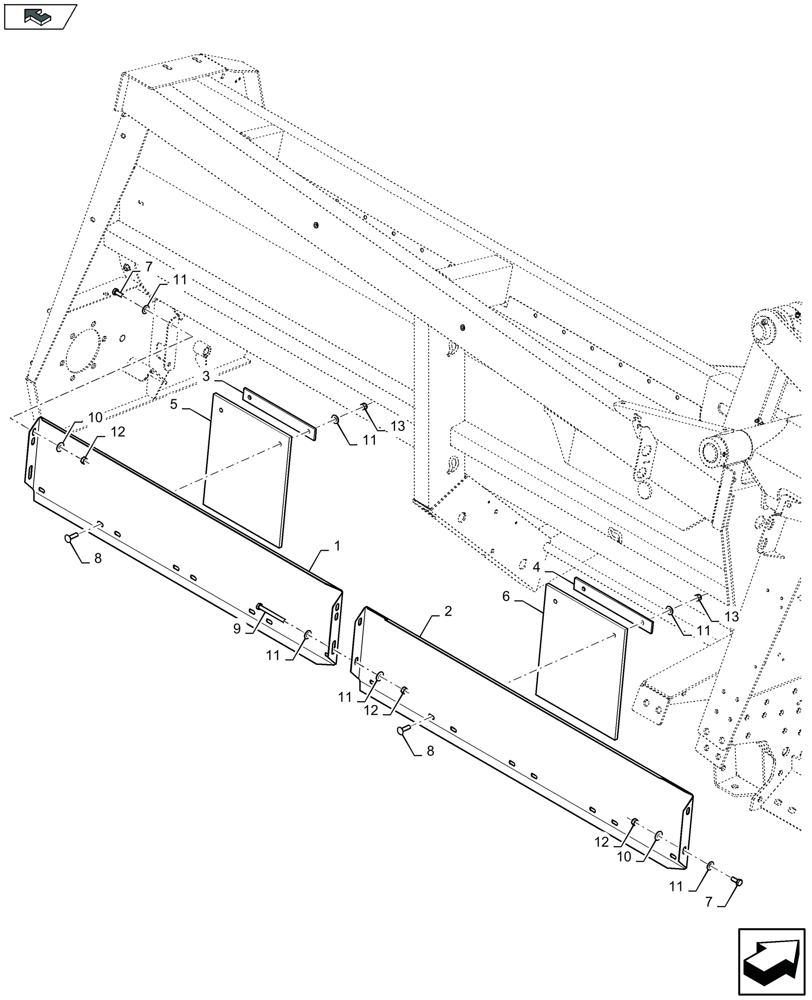

Запчасти Case IH 4412F-30 (58.208.790) - CHOPPER SHIELDINGS, LH & RH (58) - ATTACHMENTS/HEADERS

1

47550147

PLATE

2шт.

2

47550151

PLATE

2шт.

3

47631079

PLATE

8шт.

4

84977660

FIXING PLATE

8шт.

5

84977584

CANVAS

8шт.

6

47547660

CANVAS

8шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

8

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

68шт.

9

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

4шт.

10

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

12шт.

11

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

44шт.

12

9706690

NUT,M8 x 1.25, Cl 8

12шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

32шт.
