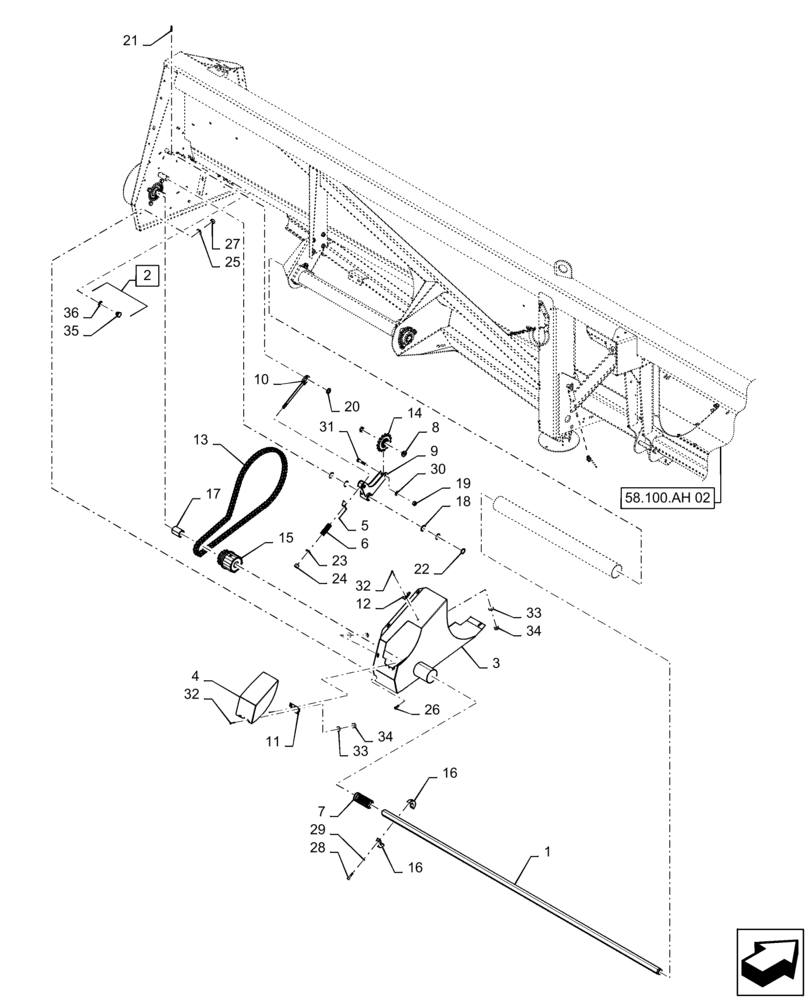

Запчасти Case IH 4412-30 (58.100.AH[03]) - DRIVE, HEADER, ASSY, REAR, LH (58) - ATTACHMENTS/HEADERS

1

87482241

SHAFT

Jackshaft

2шт.

2

84977693

PLUG,M18 x 1.5

Incl 35 - 36

2шт.

3

87480763

SHIELD

LH

1шт.

4

87520647

COVER

Plate, LH

1шт.

5

84989032

INDICATOR

Plated

2шт.

6

9817602

SPRING

Compression

2шт.

7

353561168

SPRING

Jackshaft

2шт.

8

84561546

SPACER,13mm ID x 30mm OD x 10.5mm L

Shaft

4шт.

9

84977643

IDLER LEVER

Arm

2шт.

10

84977640

THREADED ROD

Eyebolt

2шт.

11

350083

HINGE

Shield

2шт.

12

47325

CLIP

Lock

2шт.

13

84559624

CHAIN,#60, 94 Links x 19.05mm = 1790.7mm

2шт.

14

84980926

SPROCKET

Drive

2шт.

15

84568959

CLUTCH

Drive

2шт.

16

84977051

HALF-SHELL

Clamp

4шт.

17

322525550

SLEEVE

Bushing

2шт.

18

419854

WASHER,26mm ID x 35mm OD x 1mm Thk

8шт.

19

9706685

NUT,M12 x 1.75, Cl 8

2шт.

20

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

21

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

22

370002

CIRCLIP,M25, External

2шт.

23

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

24

412126

NUT,M12 x 1.75

2шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

26

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

27

9706690

NUT,M8 x 1.25, Cl 8

4шт.

28

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

29

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

30

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

31

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

32

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

14шт.

33

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

14шт.

34

100012

NUT,M4 x 0.7, Cl 8

14шт.

35

84977695

PLUG

Incl with 2

1шт.

36

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Incl with 2

1шт.
