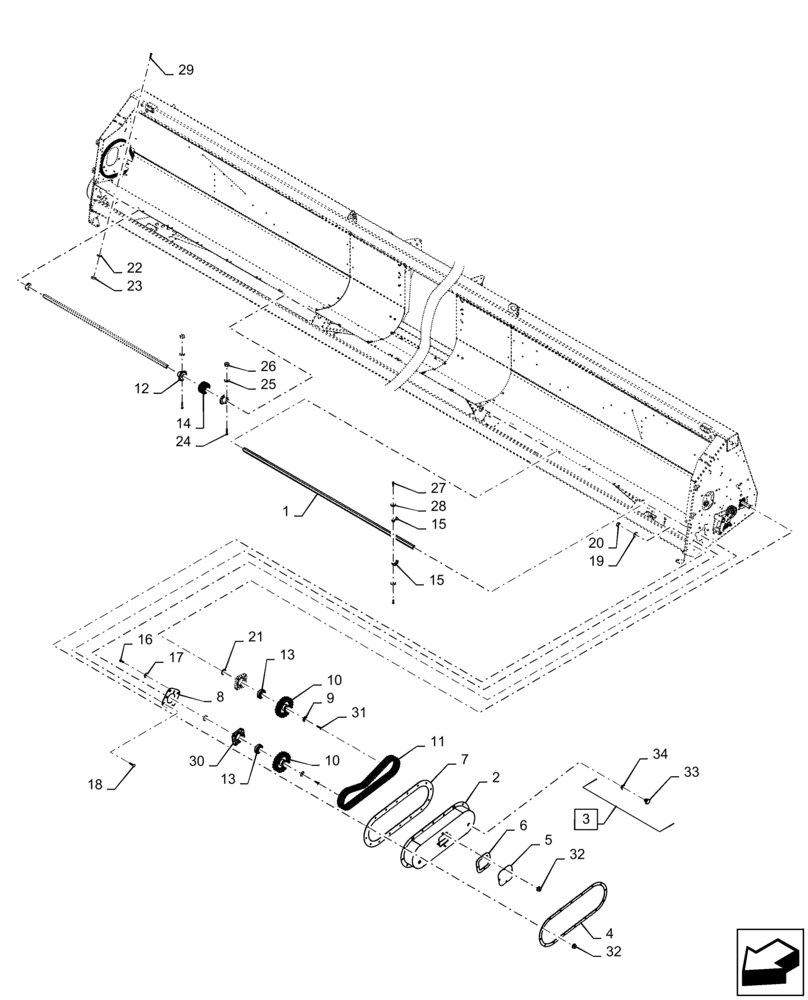

Запчасти Case IH 4412-30 (58.100.AH[01]) - DRIVE, HEADER, ASSY, FRONT (58) - ATTACHMENTS/HEADERS

1

87482251

DRIVE SHAFT

Jackshaft

4шт.

2

87482693

SHIELD

Chain

2шт.

3

84977693

PLUG,M18 x 1.5

Incl 33 - 34

4шт.

4

84977574

PLATE

Cover

2шт.

5

84977580

COVER

Inspection

2шт.

6

84977581

GASKET

Inspection Cover

2шт.

7

84977588

GASKET

Chain Cover

2шт.

8

87477885

STEEL PLATE

Bearing Mount

2шт.

9

322453050

LOCK WASHER

Sprocket

4шт.

10

87752746

SPROCKET

Chain

4шт.

11

87480340

CHAIN,A80-2, 66 Links x 25.4mm = 1676.4mm

2шт.

12

322570650

DRIVEN SPROCKET

Chain

4шт.

13

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

4шт.

14

340437629

CHAIN,60-2, 14 Links x 19.05mm = 266.7mm

Drive

2шт.

15

84977051

HALF-SHELL

Clamp

4шт.

16

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

16шт.

17

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

16шт.

18

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

8шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

20

9706685

NUT,M12 x 1.75, Cl 8

8шт.

21

370007

SNAP RING,M45, Ext

4шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

23

9706690

NUT,M8 x 1.25, Cl 8

2шт.

24

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

25

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

26

100016

NUT,M10 x 1.5, Cl 8

4шт.

27

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

28

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

29

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

30

87477884

BEARING HOUSING,96 mm ID x 110 mm OD x 23.5 mm

4шт.

31

84976774

SCREW,FLAT, M12 x 30mm, Cl 8.8

4шт.

32

86619801

FLANGE NUT,M8 x 1.25, Cl 8

24шт.

33

84977695

PLUG

Incl with 3

1шт.

34

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Incl with 3

1шт.
