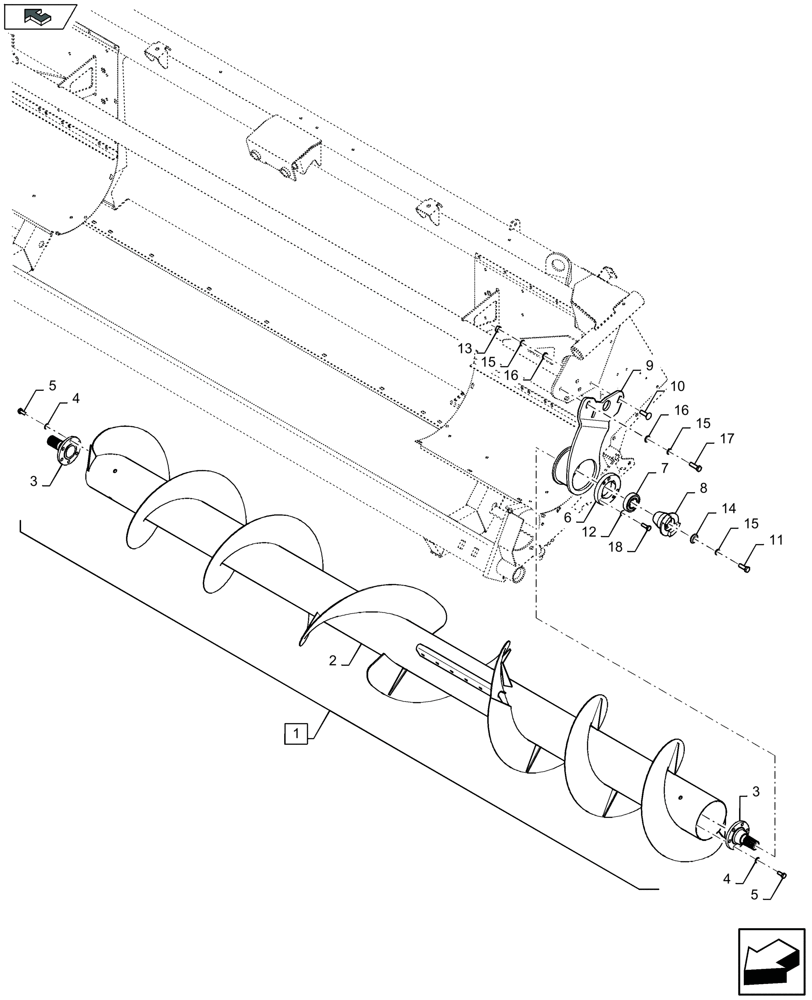

Запчасти Case IH 4408F-30 (58.120.030) - CENTRAL AUGER (58) - ATTACHMENTS/HEADERS

1

84976568

AUGER

Incl 2 - 5

1шт.

2

84976195

AUGER

1шт.

3

322529450

SHAFT

2шт.

MAINTENANCE PART

1шт.

4

412655

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.6mm Thk

12шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

12шт.

6

321139050

SUPPORT

2шт.

7

84002007

BALL BEARING,35mm ID x 72mm OD x 17mm W

2шт.

MAINTENANCE PART

1шт.

8

84976905

HUB

2шт.

MAINTENANCE PART

1шт.

9

47526764

SUPPORT

LH

1шт.

9

47526750

SUPPORT

RH

1шт.

10

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

4шт.

11

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

12

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

, Serial Range: -C669

6шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Start Serial: D670

6шт.

13

9706685

NUT,M12 x 1.75, Cl 8

4шт.

14

84604492

WASHER

2шт.

15

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

, Serial Range: -C669

8шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Start Serial: D670

8шт.

16

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

6шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

18

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.
