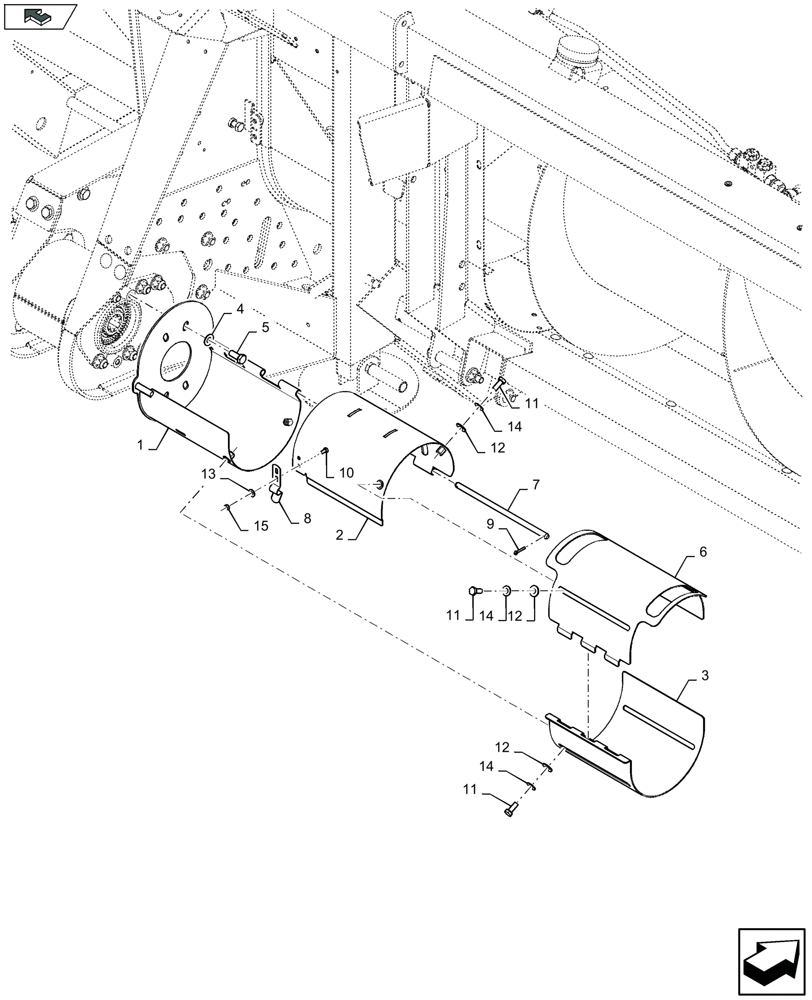

Запчасти Case IH 4408F-30 (58.100.210) - POWER TAKE-OFF SHIELDING (58) - ATTACHMENTS/HEADERS

1

47582237

SHIELD

LH, Serial Range: -C653

1шт.

1

47808883

SHIELD

LH, Serial Range: -F654685

1шт.

1

47958470

SHIELD

LH, Start Serial: D686

1шт.

1

47582234

SHIELD

RH, Serial Range: -C653

1шт.

1

47808885

SHIELD

RH, Serial Range: -F654685

1шт.

1

47958472

SHIELD

RH, Start Serial: D686

1шт.

2

47582244

COVER

LH, Serial Range: -C653

1шт.

2

47808919

SHIELD

LH, Start Serial: D654

1шт.

2

47582251

COVER

RH, Serial Range: -C653

1шт.

2

47808928

SHIELD

RH, Start Serial: D654

1шт.

3

47582255

COVER

, Serial Range: -C653

2шт.

3

47749859

COVER

, Start Serial: D654

2шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Serial Range: -C681

4шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: D682

4шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

, Serial Range: -C681

4шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

, Start Serial: D682

8шт.

6

47582259

COVER

2шт.

7

47582262

SHAFT

2шт.

8

165160

LATCH

2шт.

9

130003

COTTER PIN,3mm OD x 30mm OAL

4шт.

10

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

4шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

12

87020309

WASHER

, Serial Range: -C681

8шт.

12

86639316

WASHER,8.4mm ID x 20mm OD x 2mm Thk

, Start Serial: D682

8шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Serial Range: -C681

4шт.

13

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

, Start Serial: D682

4шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

15

86508813

NUT,M5, Cl 8

4шт.
