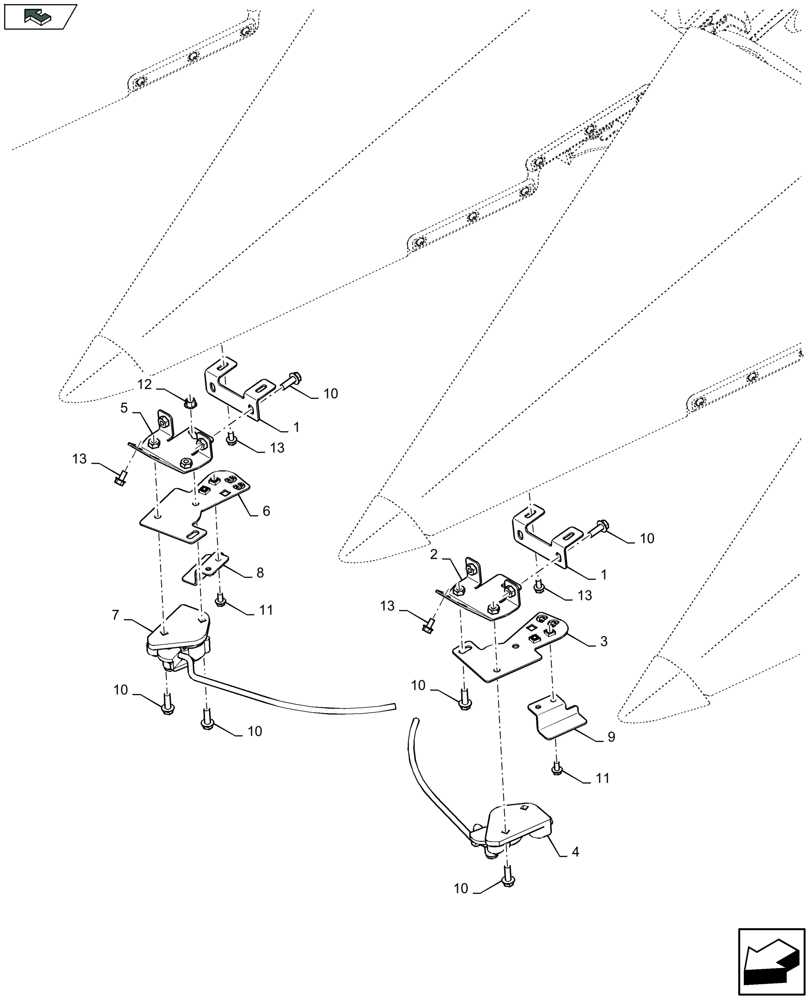

Запчасти Case IH 4408F-30 (55.785.040) - ROW GUIDANCE SENSOR (55) - ELECTRICAL SYSTEMS

1

47553194

SUPPORT

2шт.

2

47553191

SUPPORT

1шт.

3

47370982

PLATE

1шт.

4

87487708

SENSOR

ROW GUIDANCE SENSOR

1шт.

5

47553197

SUPPORT

1шт.

6

47370984

PLATE

1шт.

7

87487709

SENSOR

ROW GUIDANCE SENSOR

1шт.

8

47470607

PROTECTOR

1шт.

9

47470905

PROTECTOR

1шт.

10

9804262

BOLT,M10 x 39.2mm, Cl 8.8

10шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

12

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

, Serial Range: -C685

10шт.

13

47662028

BOLT,Hex, M8 x 16mm, Cl 8.8

, Start Serial: D686

10шт.
