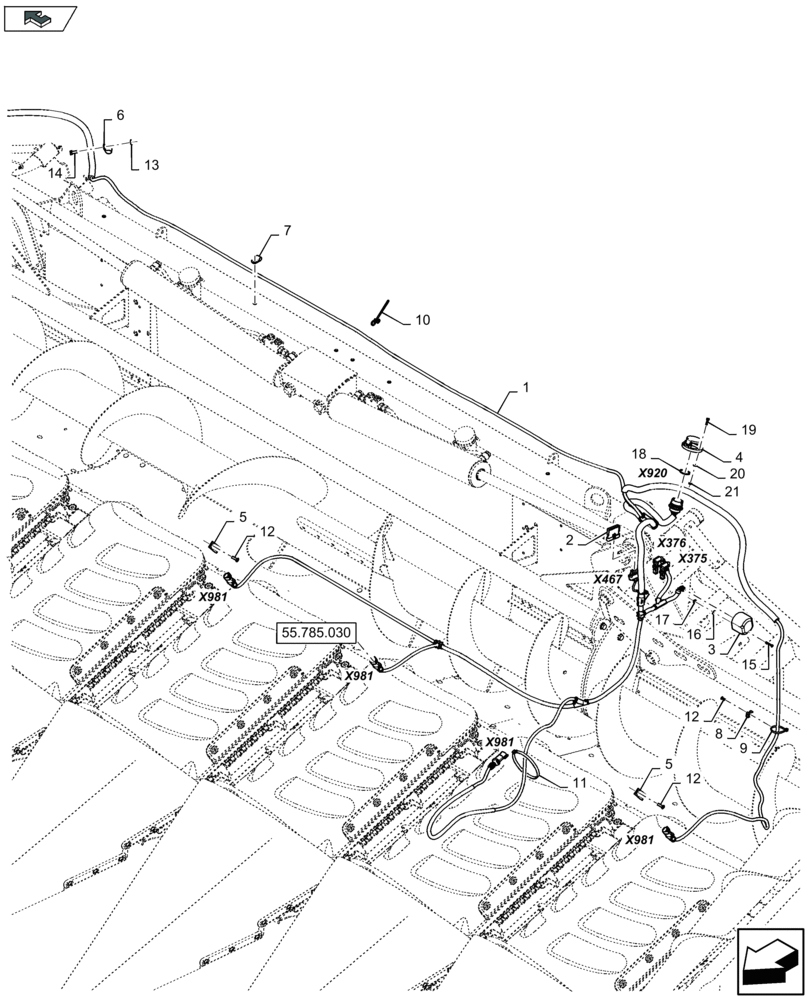

Запчасти Case IH 4408F-30 (55.100.020) - MAIN CABLE HARNESS (55) - ELECTRICAL SYSTEMS

1

47666196

ELECTRICAL WIRE

1шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

1

47666189

ELECTRICAL WIRE

1шт.

FOR 4412F-30 ONLY

1шт.

1

47666198

ELECTRICAL WIRE

1шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

1

47882150

WIRE HARNESS

, Start Serial: D682

1шт.

FOR 4408F-30 ONLY

1шт.

FOR USE WITH US ROAD LIGHTS ONLY

1шт.

2

86837775

RESISTOR

1шт.

3

398224

MULTIPOLE CONNECTOR,7 Pin

1шт.

FOR 4406F-75, 4406F-80, 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

4

86606228

COVER

1шт.

5

87716495

CLAMP

5шт.

6

239859

CLAMP

6шт.

FOR 4408F-75, 4408F-80, 4412F-30 AND 4408F-30 ONLY

1шт.

7

9839372

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

FOR 4408F-75, 4408F-80, 4412F-30 AND 4408F-30 ONLY

1шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

8шт.

9

86566989

CABLE TIE,208mm L

26шт.

10

82013031

CABLE TIE,193mm L

4шт.

11

396718

STRAP

5шт.

FOR 4406F-75, 4406F-80, 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

12

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

13шт.

13

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

FOR 4408F-75, 4408F-80, 4412F-30 AND 4408F-30 ONLY

1шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

10шт.

FOR 4408F-75, 4408F-80, 4412F-30 AND 4408F-30 ONLY

1шт.

15

86511825

SCREW,Phillips Drive, Pan HD, M4 x 30mm, Cl 4.8

3шт.

FOR 4406F-75, 4406F-80, 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

16

140024

LOCK WASHER,M4

3шт.

FOR 4406F-75, 4406F-80, 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

17

100012

NUT,M4 x 0.7, Cl 8

3шт.

FOR 4406F-75, 4406F-80, 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

18

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

19

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

20

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

21

86508813

NUT,M5, Cl 8

4шт.
