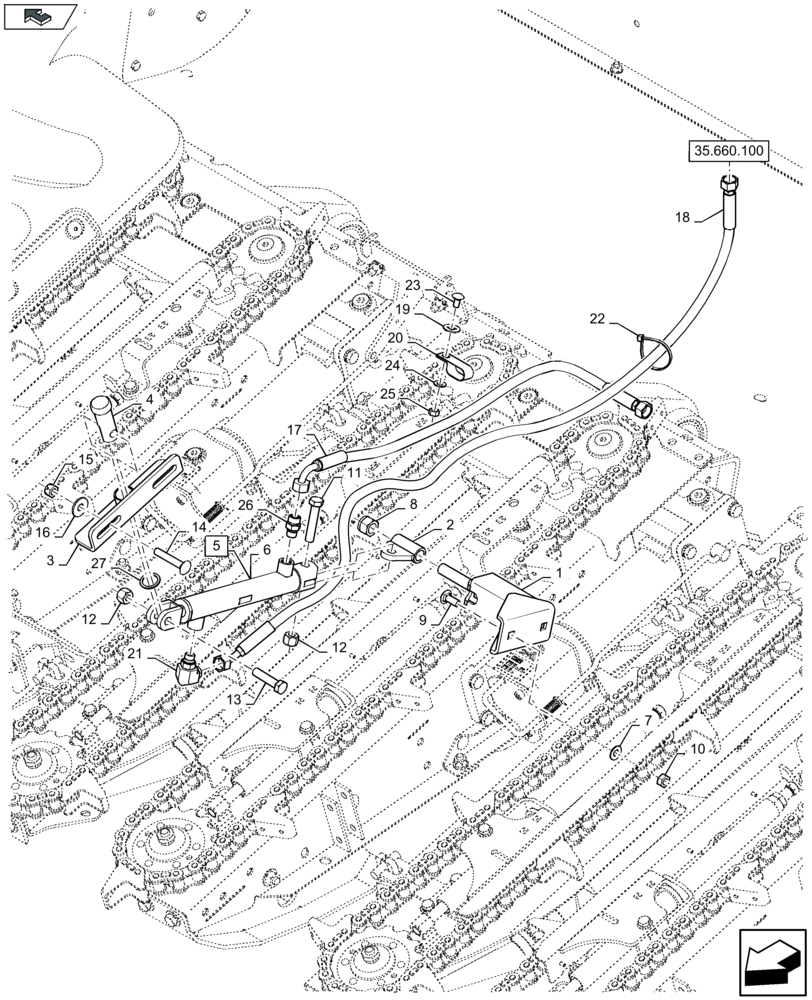

Запчасти Case IH 4408F-30 (35.660.110) - HYDRAULIC CYLINDER FOR ROW UNIT HOOD (35) - HYDRAULIC SYSTEMS

1

84554959

SUPPORT

1шт.

2

84554935

SUPPORT

1шт.

3

47504724

SUPPORT

, Serial Range: -C669

1шт.

3

47723113

SUPPORT

, Start Serial: D670

1шт.

4

84554903

PIN

1шт.

5

84554969

HYDRAULIC CYLINDER,Double Acting, 18mm Rod, 147mm Stroke

Incl 6, Serial Range: -C669

1шт.

5

47762392

HYDRAULIC CYLINDER

Incl 6, Start Serial: D670

1шт.

6

47376254

SEAL KIT

, Serial Range: -C669

1шт.

6

47762029

SEAL KIT

, Start Serial: D670

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

8

412066

NUT,M16 x 2.0, Cl 8

1шт.

9

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

10

100016

NUT,M10 x 1.5, Cl 8

2шт.

11

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

12

412126

NUT,M12 x 1.75

2шт.

13

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

14

86512447

CARRIAGE BOLT,Short Square Neck, M10 x 60mm, Class 8.8

2шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

16

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

17

47380833

HYDRAULIC HOSE,6.35mm ID x 1049mm L, SAE 100R16

LH

1шт.

FOR 4412F-30 ONLY

1шт.

17

84584079

HYDRAULIC HOSE

LH

1шт.

FOR 4406F-75, 4406F-80, 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

17

84602858

HYDRAULIC HOSE

RH

2шт.

18

47629872

HYDRAULIC HOSE

1шт.

19

47383518

WASHER

2шт.

20

620019

CLAMP

4шт.

21

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

, Serial Range: -C669

2шт.

21

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

, Start Serial: D670

2шт.

22

86566989

CABLE TIE,208mm L

8шт.

23

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

25

9706690

NUT,M8 x 1.25, Cl 8

2шт.

26

47384949

RESTRICTOR

2шт.

27

412568

WASHER,27mm ID x 37mm OD x 1mm Thk

, Start Serial: D662

1шт.
