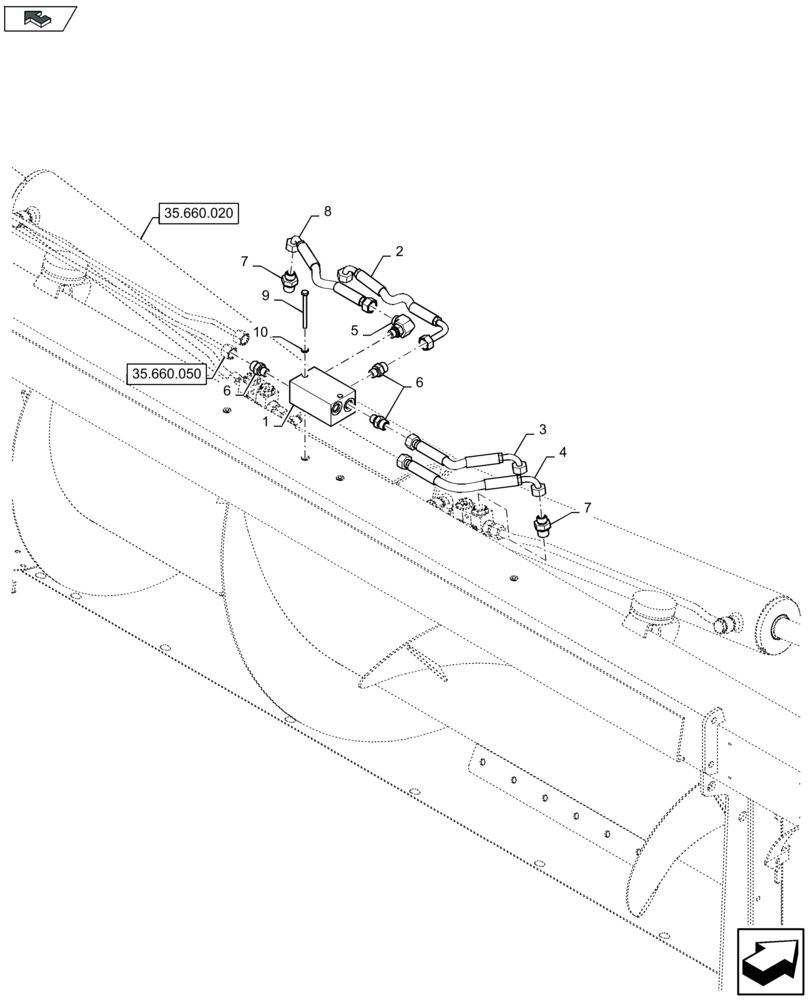

Запчасти Case IH 4408F-30 (35.660.070) - HYDRAULIC FLIP UP MANIFOLD (35) - HYDRAULIC SYSTEMS

1

84578123

MANIFOLD

1шт.

2

47621139

HYDRAULIC HOSE

1шт.

3

47621143

HYDRAULIC HOSE

1шт.

4

47621150

HYDRAULIC HOSE

1шт.

5

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

1шт.

6

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

5шт.

7

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

4шт.

8

47621147

HYDRAULIC HOSE

1шт.

9

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

2шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.
