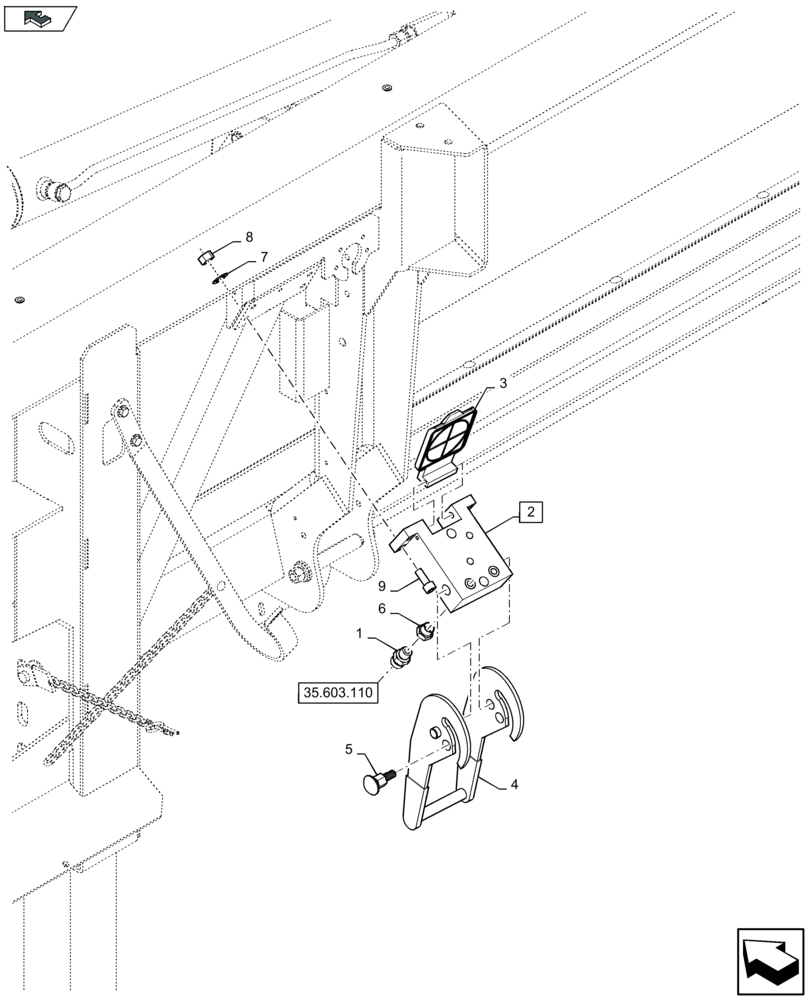

Запчасти Case IH 4408F-30 (35.603.020) - QUICK COUPLING (35) - HYDRAULIC SYSTEMS

1

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

2

84435009

COUPLING

Incl 3 - 6

1шт.

3

84435044

GUARD

1шт.

4

86623901

HANDLE

1шт.

5

86623902

LATCH

1шт.

6

84435047

COUPLING, QUICK, FEM

2шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

9706690

NUT,M8 x 1.25, Cl 8

4шт.

9

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

4шт.
