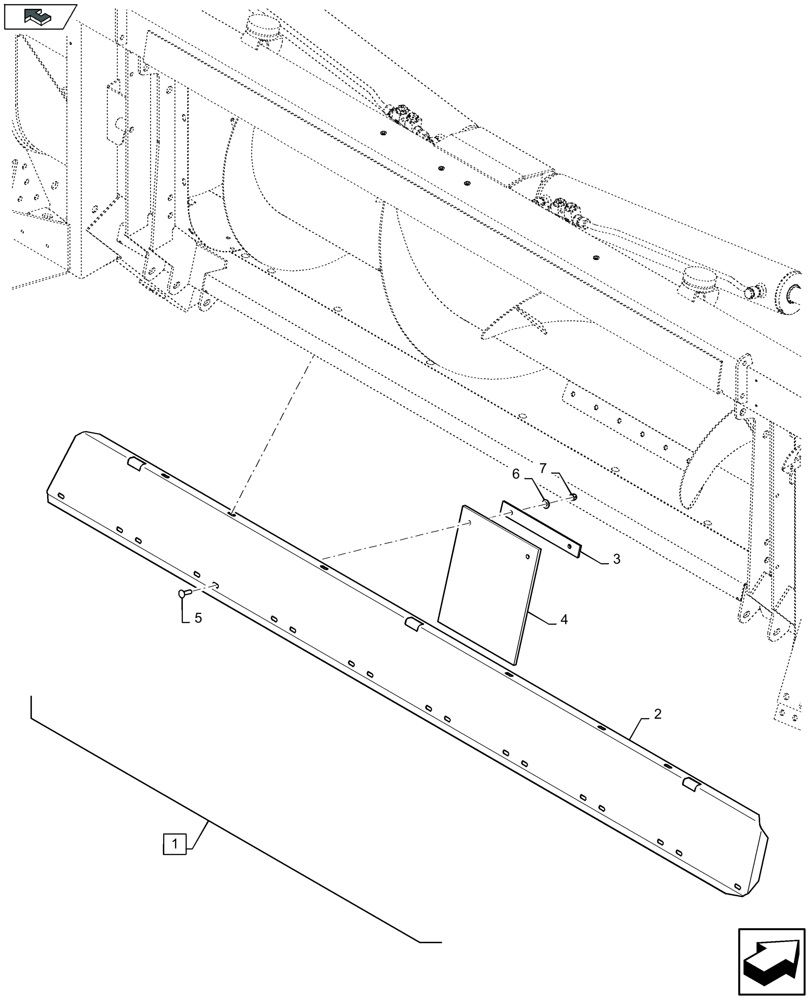

Запчасти Case IH 4408F-30 (88.058.030[03]) - DIA KIT : STALKCHOPPER KIT (88) - ACCESSORIES

1

48110955

Incl 2 - 7

DIA KIT, HARVESTER

1шт.

2

47358009

SUPPORT

1шт.

3

84977660

FIXING PLATE

9шт.

4

84977584

CANVAS

9шт.

5

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

18шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

18шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

18шт.
