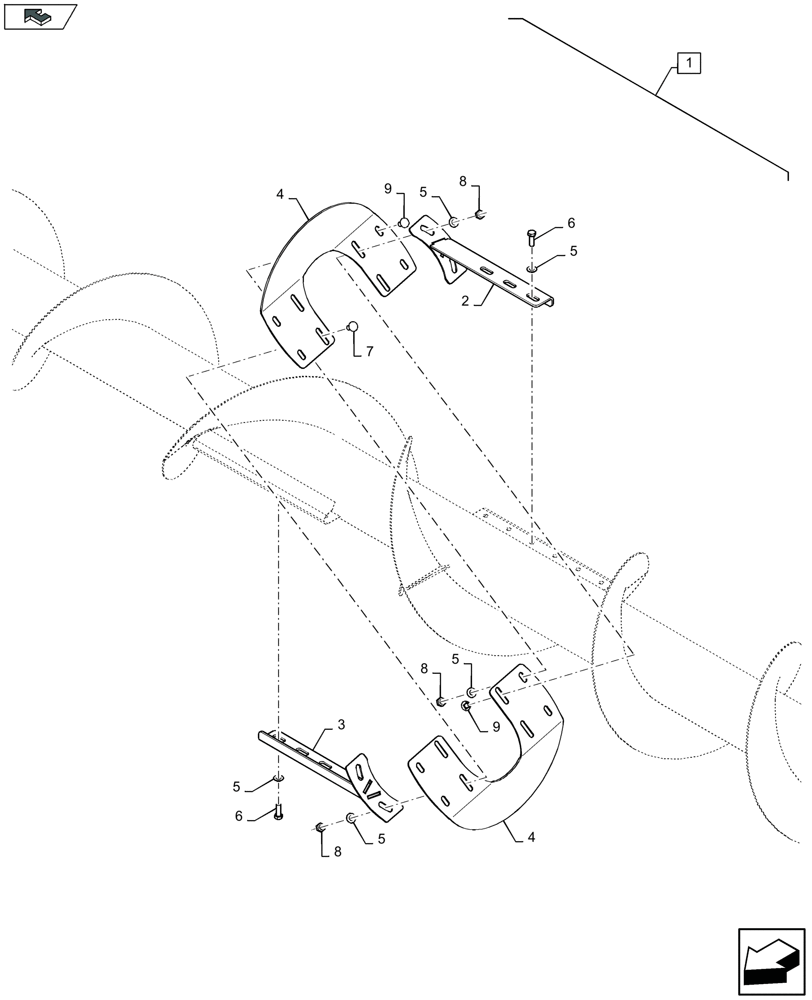

Запчасти Case IH 4408F-30 (88.058.007) - DIA KIT : CENTRAL AUGER DISC KIT (88) - ACCESSORIES

1

84361624

DIA KIT, HARVESTER

Incl 2 - 9

1шт.

2

84361590

SUPPORT

1шт.

3

84361592

SUPPORT

1шт.

4

84485727

DISC

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

7

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

8

100016

NUT,M10 x 1.5, Cl 8

8шт.

9

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.
