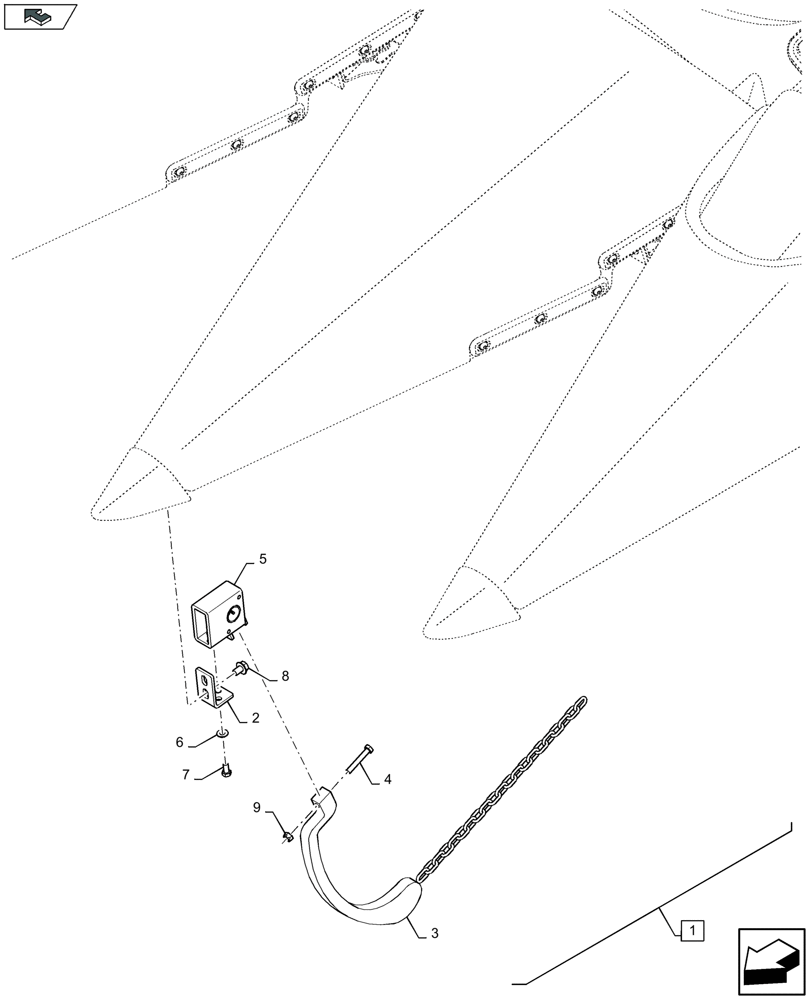

Запчасти Case IH 4408F-30 (88.055.009[02]) - DIA KIT : AHHC DUNCAN (88) - ACCESSORIES

1

47505289

DIA KIT, HARVESTER

Incl 2 - 9

1шт.

2

47399993

SUPPORT

3шт.

3

47372889

ROD

3шт.

4

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

5

84543535

SENSOR

3шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

7

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

9шт.

8

87646158

BOLT,Hex, M10 x 15mm, Cl 8.8

6шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.
