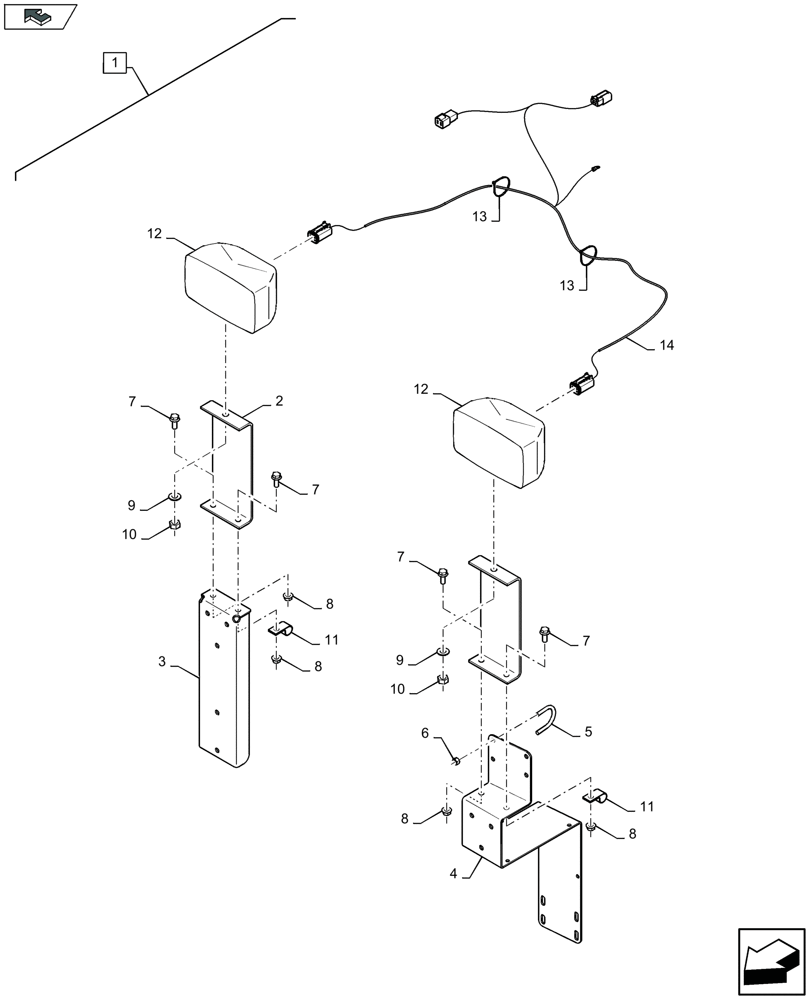

Запчасти Case IH 4408F-30 (88.055.002) - DIA KIT : LIGHT KIT - ROTARY COMBINE - MIDRANGE (88) - ACCESSORIES

1

87584550

DIA KIT, HARVESTER

Incl 2 - 14

1шт.

2

87524401

PLATE

2шт.

3

87564056

BRACKET

1шт.

4

87567408

BRACKET

1шт.

5

188528A1

U-BOLT,1/4" - 20 x 34.80mm W x 44mm L, Gr 5

4шт.

6

230-4214

LOCK NUT,1/4"-20, GA

8шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

10

100016

NUT,M10 x 1.5, Cl 8

2шт.

11

9837692

CLAMP,16.67mm ID, 13.46mm Bolt Hole, P Type

2шт.

12

86613046

LAMP

2шт.

13

86566990

CABLE TIE,292mm OAL x 4.8mm W

20шт.

14

84457539

HARNESS

1шт.
