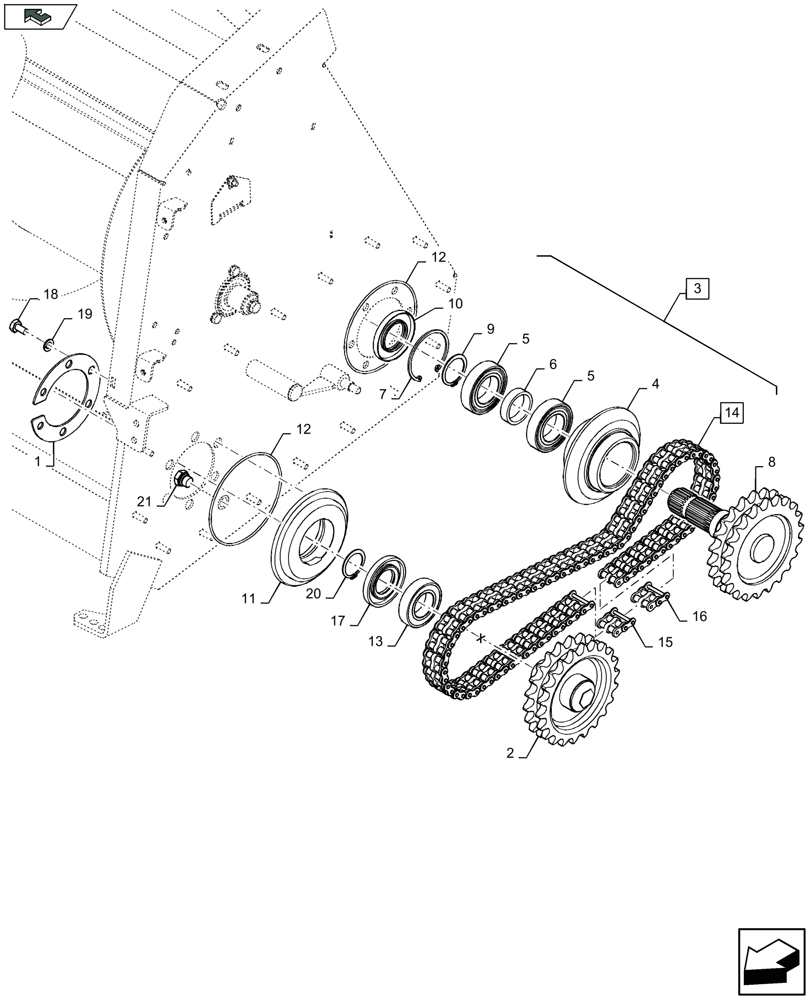

Запчасти Case IH 4408F-30 (58.224.440) - HEADER DRIVE CHAIN AND SPROCKETS, LH & RH (58) - ATTACHMENTS/HEADERS

1

47399407

PLATE

2шт.

2

84578776

SPROCKET

22T, Serial Range: -C669

2шт.

MAINTENANCE PART

1шт.

2

47654166

SPROCKET

22T, Start Serial: D670

2шт.

MAINTENANCE PART

1шт.

3

84524672

HOUSING

Incl 4 -10, Serial Range: -C669

2шт.

3

47819861

BEARING HOUSING

Incl 4 -10

2шт.

4

84524673

BEARING HOUSING

1шт.

5

210045

BALL BEARING,50mm ID x 90mm OD x 20mm W

, Serial Range: -C669

2шт.

MAINTENANCE PART

1шт.

5

87591960

BALL BEARING,50mm ID x 90mm OD x 20mm W

, Start Serial: D670

2шт.

MAINTENANCE PART

1шт.

6

322699050

SPACER

1шт.

MAINTENANCE PART

1шт.

7

370013

SNAP RING,M90 x 3mm Thk, Internal

1шт.

8

84524679

SPROCKET

22T

1шт.

MAINTENANCE PART

1шт.

8

47383839

SPROCKET

20T

2шт.

MAINTENANCE PART

1шт.

FOR SPEED REDUCTION ONLY

1шт.

8

47383842

SPROCKET

24T

2шт.

MAINTENANCE PART

1шт.

FOR SPEED INCREASE ONLY

1шт.

9

370008

SNAP RING,M50, Ext

1шт.

10

84022860

SEAL,50mm ID x 90mm OD x 10mm Thk

1шт.

11

47544891

BEARING HOUSING

2шт.

12

47544988

RUBBER RING

4шт.

13

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

2шт.

MAINTENANCE PART

1шт.

14

84524716

CHAIN,Roller, 2 Links x 25,4 mm = 1473,2 mm L

Incl 15 - 16, Serial Range: -C669

2шт.

MAINTENANCE PART

1шт.

14

47383860

CHAIN,Roller, 2 Links x 25,4 mm = 1498,6 mm L

Incl 15 - 16, Start Serial: D670

2шт.

MAINTENANCE PART

1шт.

14

47383858

CHAIN,Roller, 2 Links x 25,4 mm = 1447,8 mm L

Incl 15 - 16

2шт.

MAINTENANCE PART

1шт.

FOR SPEED REDUCTION ONLY

1шт.

14

47383860

CHAIN,Roller, 2 Links x 25,4 mm = 1498,6 mm L

Incl 15 - 16

2шт.

MAINTENANCE PART

1шт.

FOR SPEED INCREASE ONLY

1шт.

15

NSS

NOT SOLD SEPARAT

LINK, Incl in 14

1шт.

16

NSS

NOT SOLD SEPARAT

CHAIN, Incl in 14

1шт.

17

47389270

BEARING COVER

2шт.

18

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

12шт.

19

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

12шт.

20

370007

SNAP RING,M45, Ext

2шт.

21

87030025

PLUG,Hex, M18 x 1.5 ORB

2шт.
